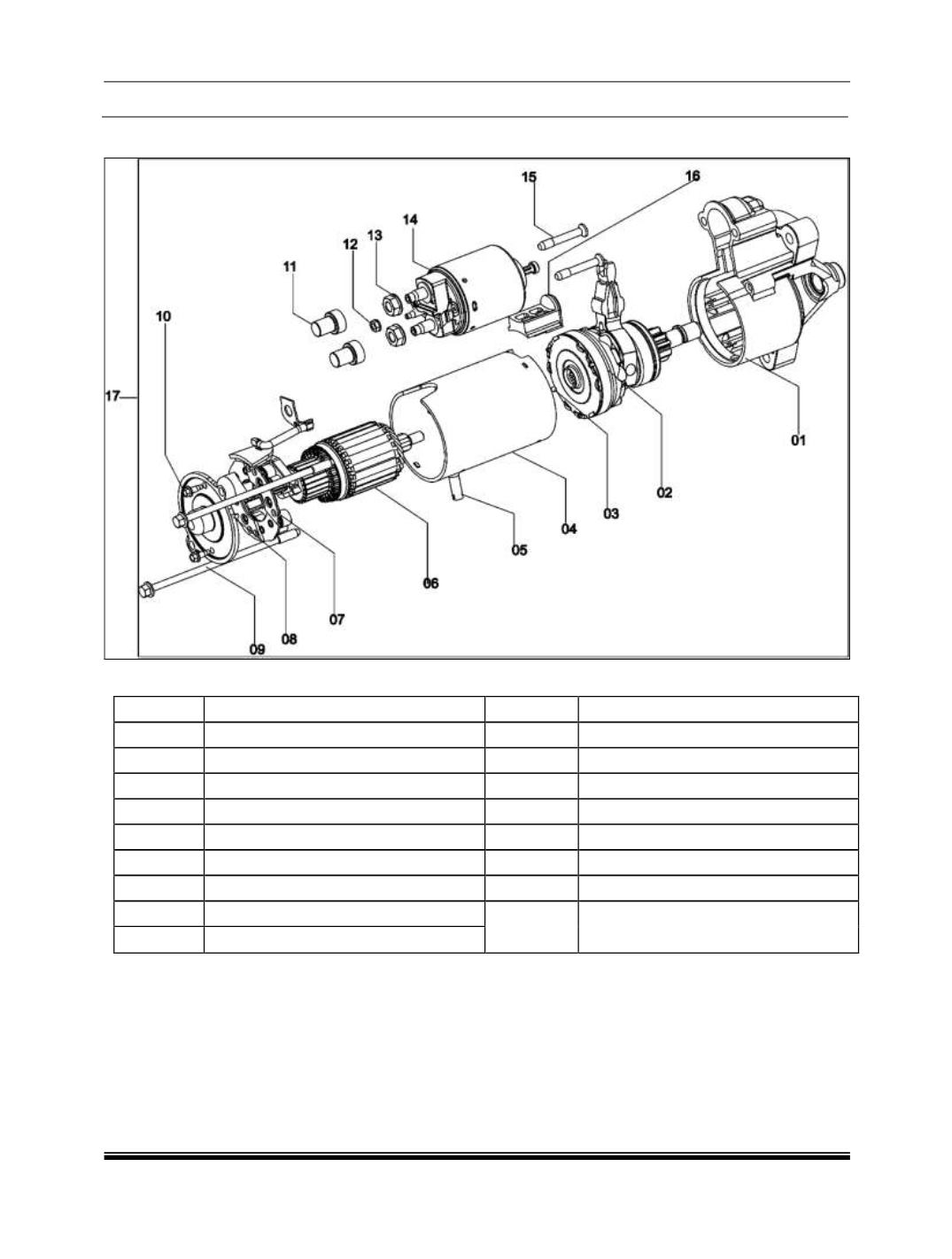

EXPLODED VIEW:
STARTER MOTOR (PART LIST) :
ITEM NO.
DESCRIPTION
ITEM NO.
DESCRIPTION
01
HOUSING ASSY
10
BRUSH HOLDER SCREW
02
DRIVE ASSY
11
TERMINAL COVER
03
THRUST BALL
12
SOLENOID TERMINAL NUT -M5
04
FRAME ASSY
13
BATTERY TERMINAL NUT M8
05
DRAIN TUBE
14
SOLENOID ASSY
06
ARMATURE
15
SOLENOID SCREW
07
BRUSH HOLDER ASSY
16
SEAL
08
END PLATE
17
STARTER _ MOTOR _ 1.4KW
09
THRU BOLT
