12.4 FUSE BOX / RELAY LOCATIONS (Applicable for RHD variants)
Location:
All the electrical circuits in the vehicle have fuses
to protect them from a short circuit or overload.

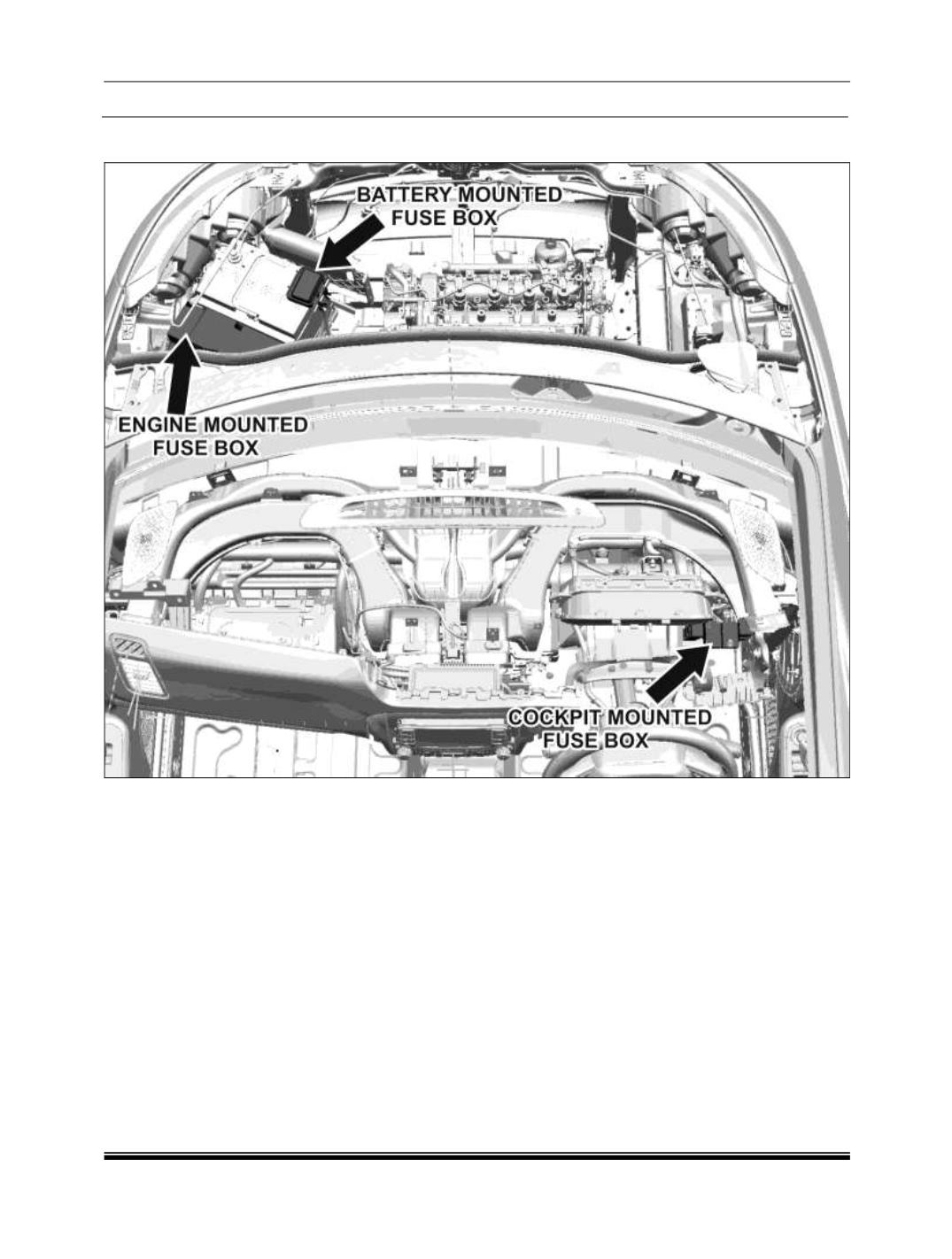

These fuses are located in 3 fuse boxes.
i. Cabin or cockpit fuse box
ii. Engine compartment fuse box
iii. Battery mounted fuse box
Checking & Replacing Fuses
If any electrical unit in the vehicle has stopped
functioning, fuses should be checked first.
Procedure to follow:
1 Turn the ignition key to lock position.
2 Remove battery terminal
3 Remove cover of the fuse box.
4 Check each fuse & look for broken/open
controls link wire inside the fuse. If it is burnt,
replace it with on of the spare fuses of same
rating.
5 If replaced fuse of same rating burns out then,
there is probably a serious electrical problem.
Note:
Use designated fuses only.
6 Battery need to be remove for fuse box bolt
removal.
7 For replacement of fuse box remove the bolts.
