Normal operating Mode

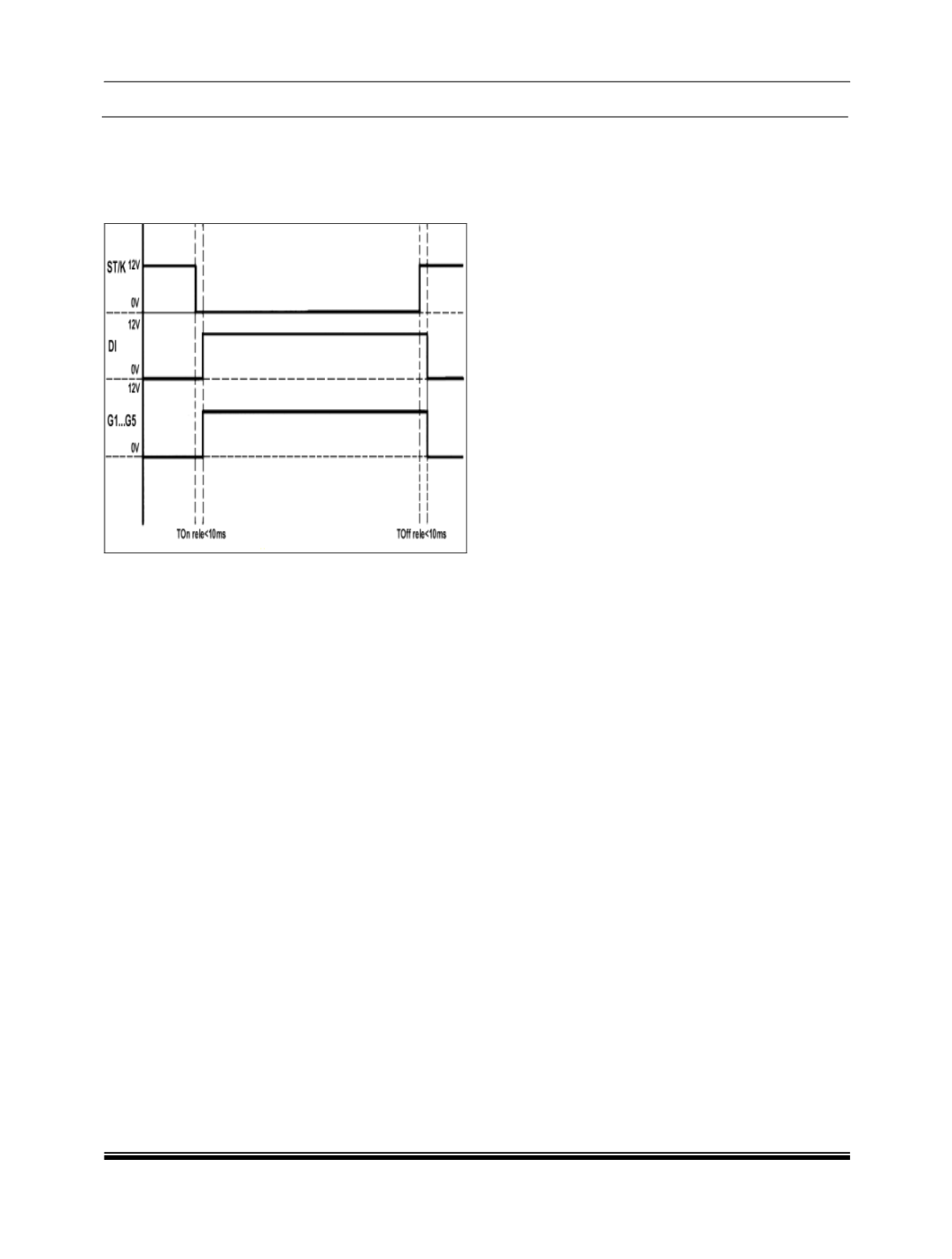

The diagram shown the proceeding of the signals
in the function of time during the phase of pre or
post heating during normal functioning condition.
Application:
The device driven by ECU system with a
diagnosis protocol EOBD (European On Board
Diagnose) drives & checks the operating state of
each glow plug during pre & post heating phases
of diesel engine made by 4 cylinders. The
operating mode is controlled by wiring harness
through command & feedback. A protection for
high current & overload voltage is integrated & it’s
supplied by the control system.
Location:
The glow plug controller mounted directly in
engine compartment.
Command & feedback Signal Description:
Command signal:
The glow plugs are supplied by control unit with
battery voltage (12V). The glow plug temperature
is controlled by ECU through a function stored
in memory, which links glow plug temperature with
the duration of heat signal (12V).
Feedback Signal:
Feedback signal given by glow plug controller to
EMS ECU. Glow plug informs the EMS ECU what
the command given by ECU is followed.
