C635 TRANSAXLE
32
NOTE:
The following tools are to be used in conjunction
with

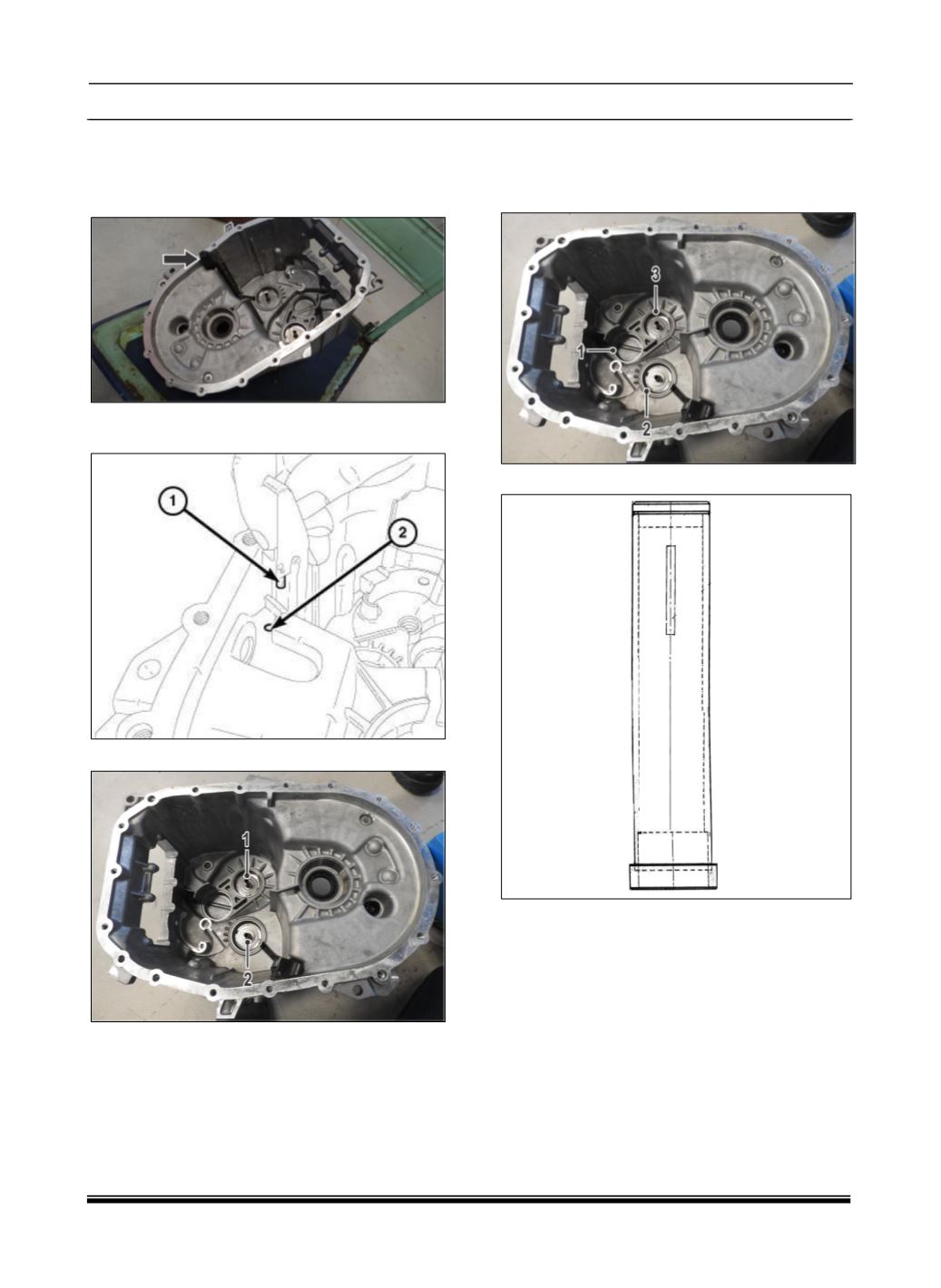

8. Install the lubricating duct.
9. Ensure that the oil duct locating pin is in the
locating hole.
10.Install the correct shim to the case.
11.Install Input and output shaft the bearing races
to the case using Installer and Drift
(NOTE: Input and output shaft bearing races as
shown having same Diameter)
BEARING ASSEMBLY DRIFT 2751 5890 2622
12.Install the gear shaft oil ducts. Using an
appropriate drift re-stake the ducts to the case.
13.Install the input shaft bearing race using and.
