C635 TRANSAXLE
28

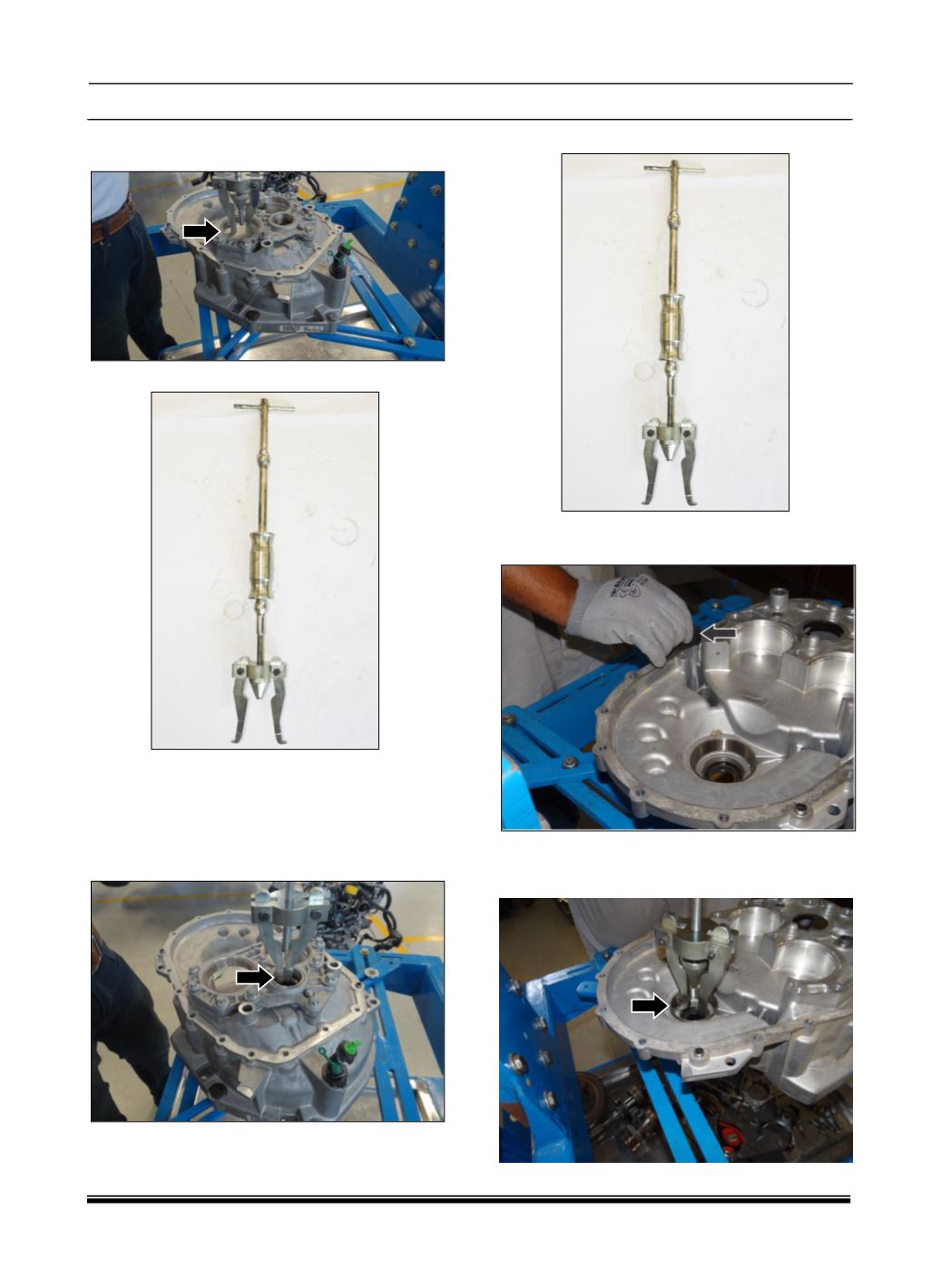

23.Remove the output shafts bearing outer race
from bearing race mounting plate using Puller
Bearing outer race remover 5438 5890 2603
NOTE:
Do not discard the shim as it will be utilized as the
starting point for the bearing preload adjustment
process.
24.Remove input shaft bearing outer race using a
Puller
Bearing outer race remover 5438 5890 2603
25.Remove Bearing Race Plate.
26.Remove the magnet.
27.Remove the clutch housing side differential
bearing race using bearing outer race remover
5438 5890 2603.
