C635 TRANSAXLE
34
lubricants to come in contact with the sealant for at
least one hour after the case halves have been
assembled.

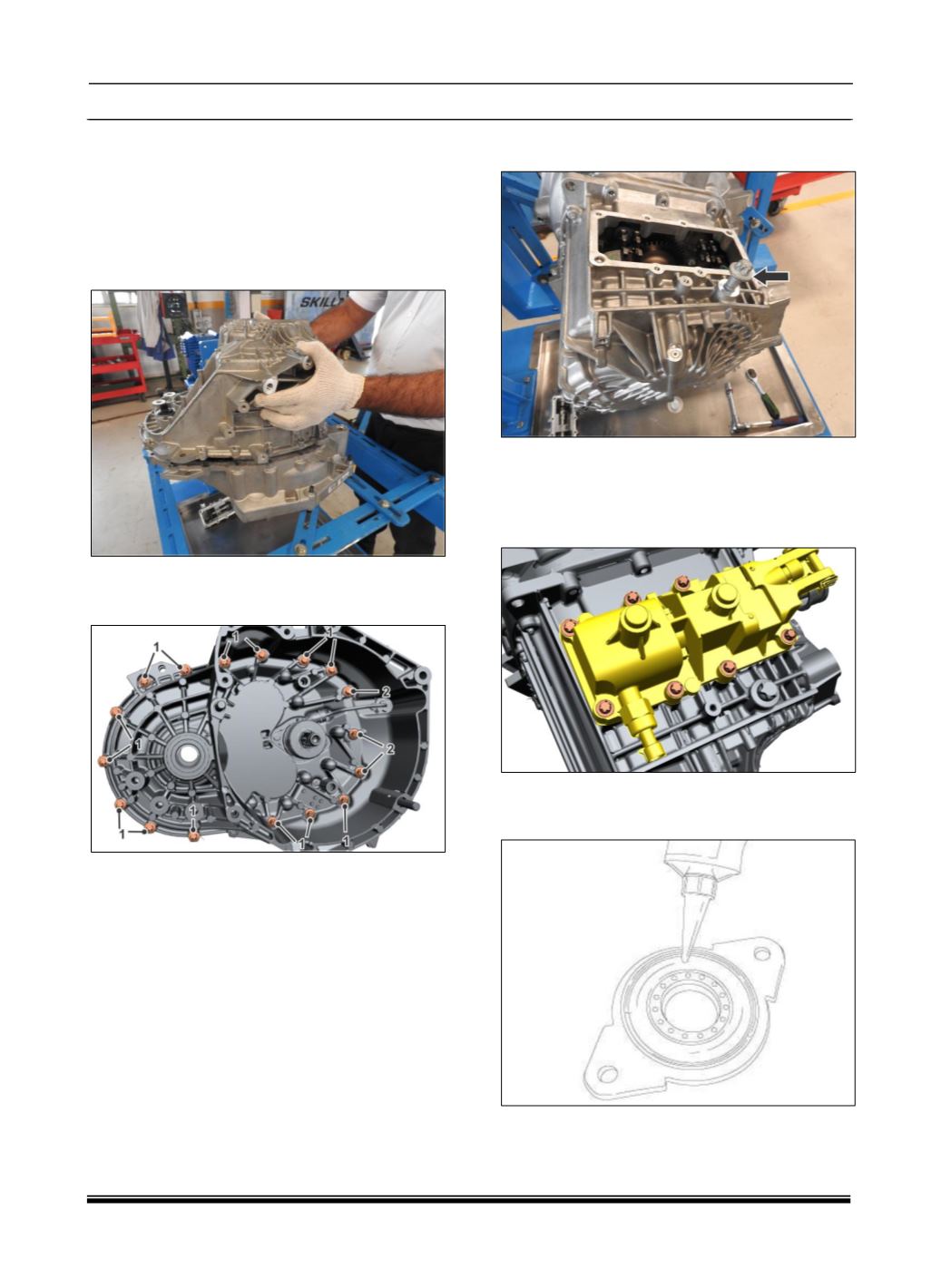

22.Apply a uniform bead of LOCTITE®509™
Sealer or equivalent to the sealing surface of
the case.
23.Install the gear side case half to the bell housing
case half.
24.Install the long case bolts (1) and the short case
bolts (2) and tighten to 25 Nm (18 ft. lbs.) using
a cross sequence.
25.Patch and install the reverse gear idler retaining
bolt using the following process. Tighten to 10
Nm (89 in. lbs.).
Remove the remaining traces of the original
locking patch with a wire brush or the
equivalent.
Clean the threads with denatured alcohol and
allow to dry.
Apply the locking patch using Mopar thread
locker.
26.Apply a uniform bead of LOCTITE®509™
Sealer or equivalent to the sealing surface of
the case.
27.Install the gear selector assembly; tighten the
bolts to 20 Nm (15 ft. lbs.).
28.Apply a uniform bead of Mopar® Threebond
RTV Sealer or equivalent to the sealing surface
of the
NEW
input shaft sealing ring.
