KRYOTEC ENGINE
175
FITMENT

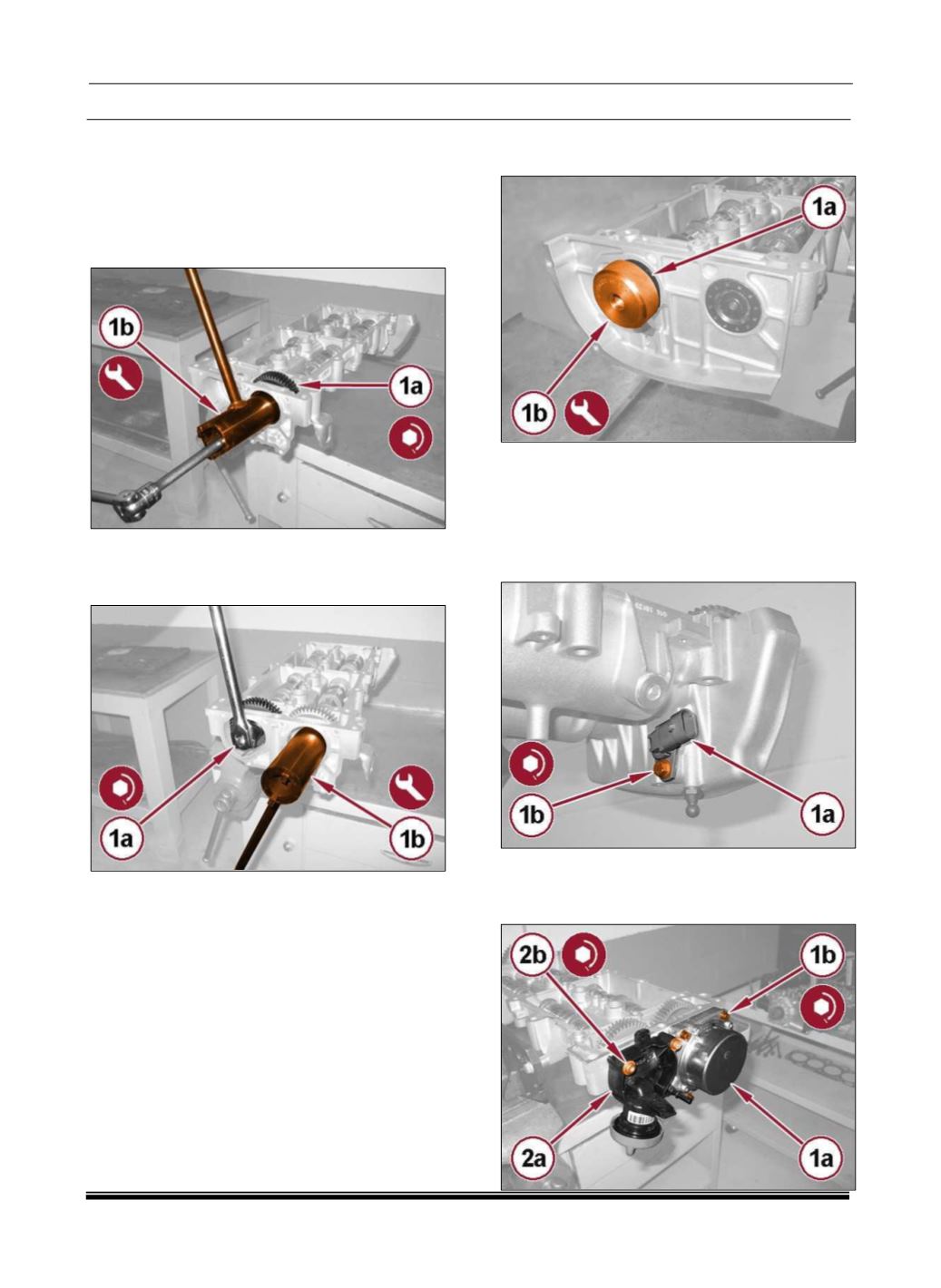

1. Install the camshafts into the cylinder head
cover.
2. Install the exhaust idler gear (1a) and using the
tool 1871008600 (1b) tighten the bolt to the proper
(Torque Specifications).
3. Install the intake idler gear (1a) and using the
tool 1871008600 (1b) tighten the bolt to the proper
(Torque Specifications).
4. Install the intake side camshaft plug.
5. Install the exhaust side front oil seal (1a) using
the tool 1870896800 (1b).
6. Install the camshaft drive pulley on the exhaust
side and secure it with the bolt but do not tighten at
this time.
7. Install the Camshaft Position (CMP) sensor (1a)
and tighten the bolt (1b) to the proper (Torque
Specifications).
8. Install the vacuum pump (1a) with NEW gasket
and tighten the bolts (1b) to the proper (Torque
Specifications).
