BODY
45
4.32.

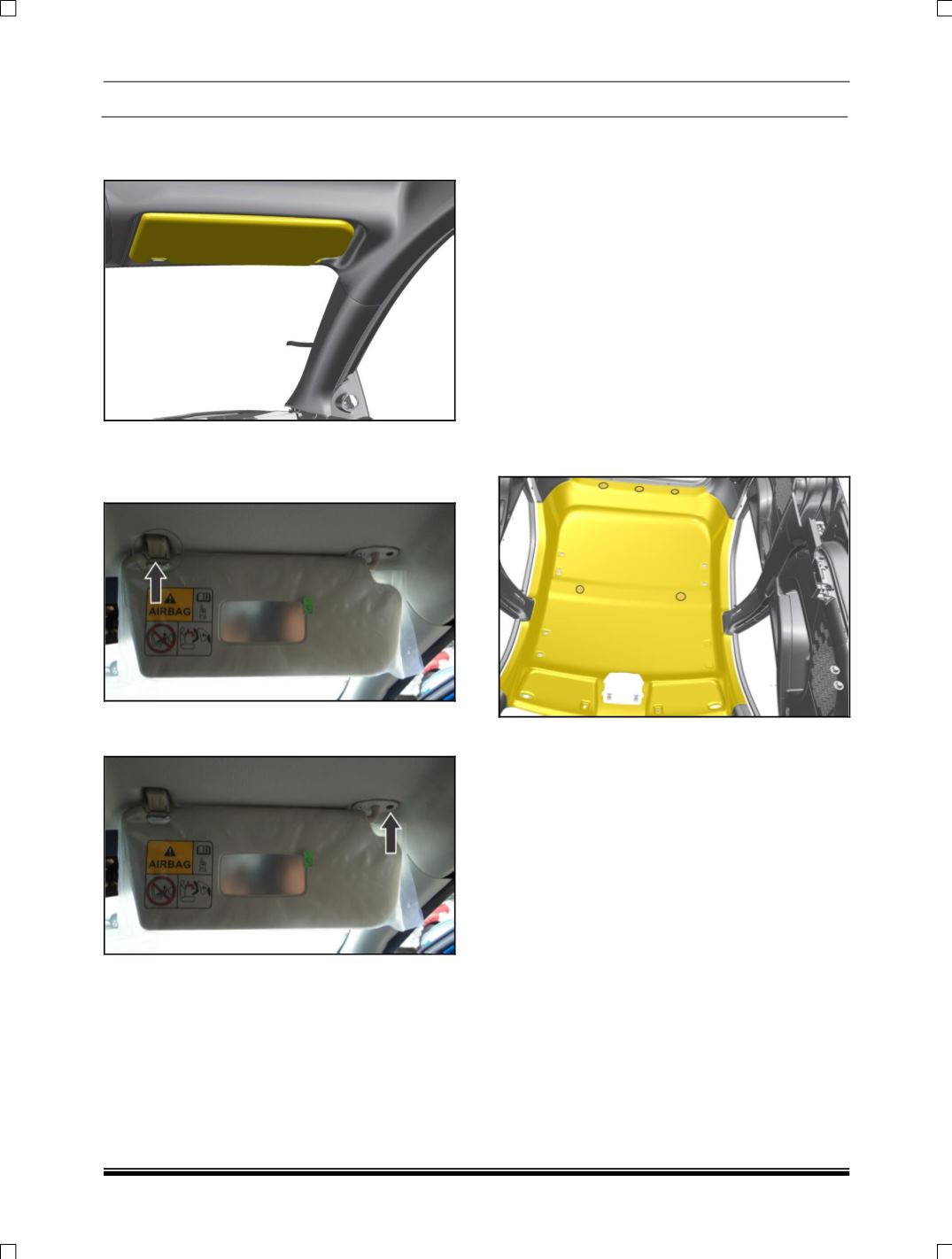

SUNVISOR
REMOVAL
1. Remove the cap.
2. Remove Sunvisor clamp Screw by Suitable
Screw driver.
3. Rotate sunvisor to access two screws and
remove sunvisor.
FITMENT
For fitment follow reverse procedure of removal.
4.33. ROOF LINEAR
REMOVAL
1. Remove ‘A’ pillar trim. (Refer R+R of A pillar
trim)
2. Remove ‘B’ pillar trim. (Refer R+R of B pillar
trim)
3. Remove ‘C’ pillar trim. (Refer R+R of C pillar
trim)
4. Remove the two sunvisors.( Refer R+R of
sunvisor)
5. Remove the roof lamp. (Refer R+R of roof lamp
in Electrical section.)
6. Remove the three grab handle. (Refer R+R of
grab handle)
7. Remove the roof trim holding snap.
8. Remove the roof trim.
FITMENT
For fitment follow reverse procedure of removal.
