NEXON EV SERVICE MANUAL

BODY

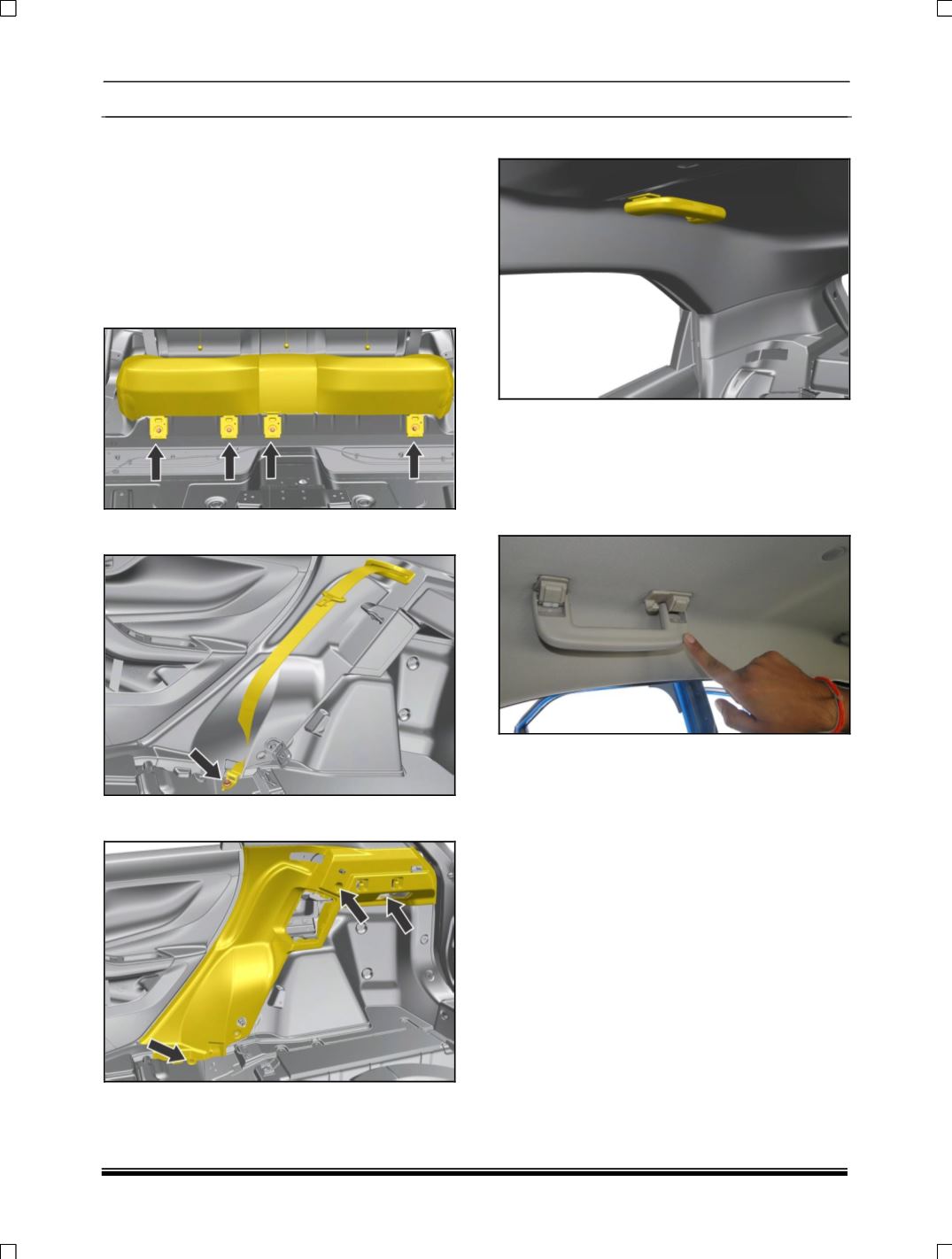

4.30. “C” PILLAR TRIMS:

REMOVAL

1. Remove parcel shelf.

2. Remove Tailgate Side inner Beading.

3. Remove Rear Door Beadings at rear quarter

location.

4. Remove rear seat backrest (for removal

process refer rear seat removal process).

5. Flip the cushion assembly.

6. Remove rear seat belt bottom mounting

fastener.

7. Remove the mounting screw & pullout C pillar

upper and lower trim

FITMENT

For fitment follow reverse procedure of removal.

4.31.

GRAB HANDLE:

NOTE

The procedure given for removal of grab handle is

applicable for all three grab handles in the vehicle.

REMOVAL

1. Open the flap of the grab handle.

2. Remove two mounting screws and remove the

grab handle.

FITMENT

For fitment follow reverse procedure of removal.
