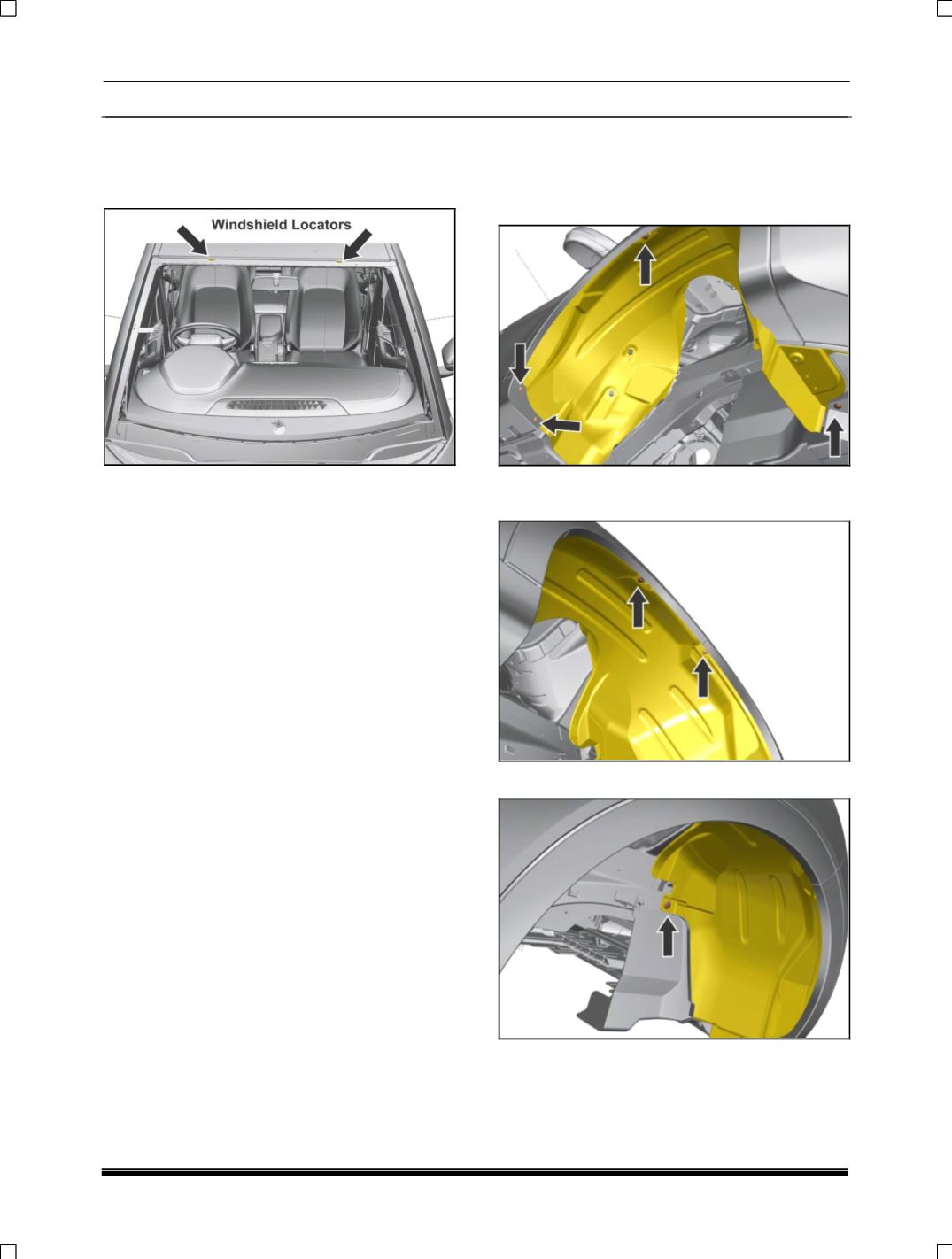

FIXING WINDSHIELD GLASS
Insert Windshield glass Locators in BIW Holes for
positioning the glass.
After the above preparation mount the glass on the
body flange from outside this operation should be
done within 15 minutes of the application of sealant
on the glass.
After mounting the glass, the same has to be
pulled towards inside of body with the help of
vacuum cups. Slightly tap the glass all around with
hand for proper seating of glass mould.
Wipe off the excessive spill off of sealant with
clean dry rags. Do not use iso-propanol.
Keep the vacuum cups pulled for 10 to 12 minutes
as mentioned above.
Do not drive the car for 2 hours.
•
FIXING TAIL GATE GLASS
Repeat the above procedure for Tail gate glass.
For Tail gate glass, after fixing, use Tensioner belt
for holding the glass with flange.
Insert rubber stoppers at bottom edge to push the
glass with rubber seal as far as possible.
4.37. FRONT WHEEL ARCH LINER
REMOVAL
1. Remove three mounting screw holding front
bumper from bottom.
2. Remove two mounting screw located inside the
arch liner.
3. Pull out tree clips.
