4.

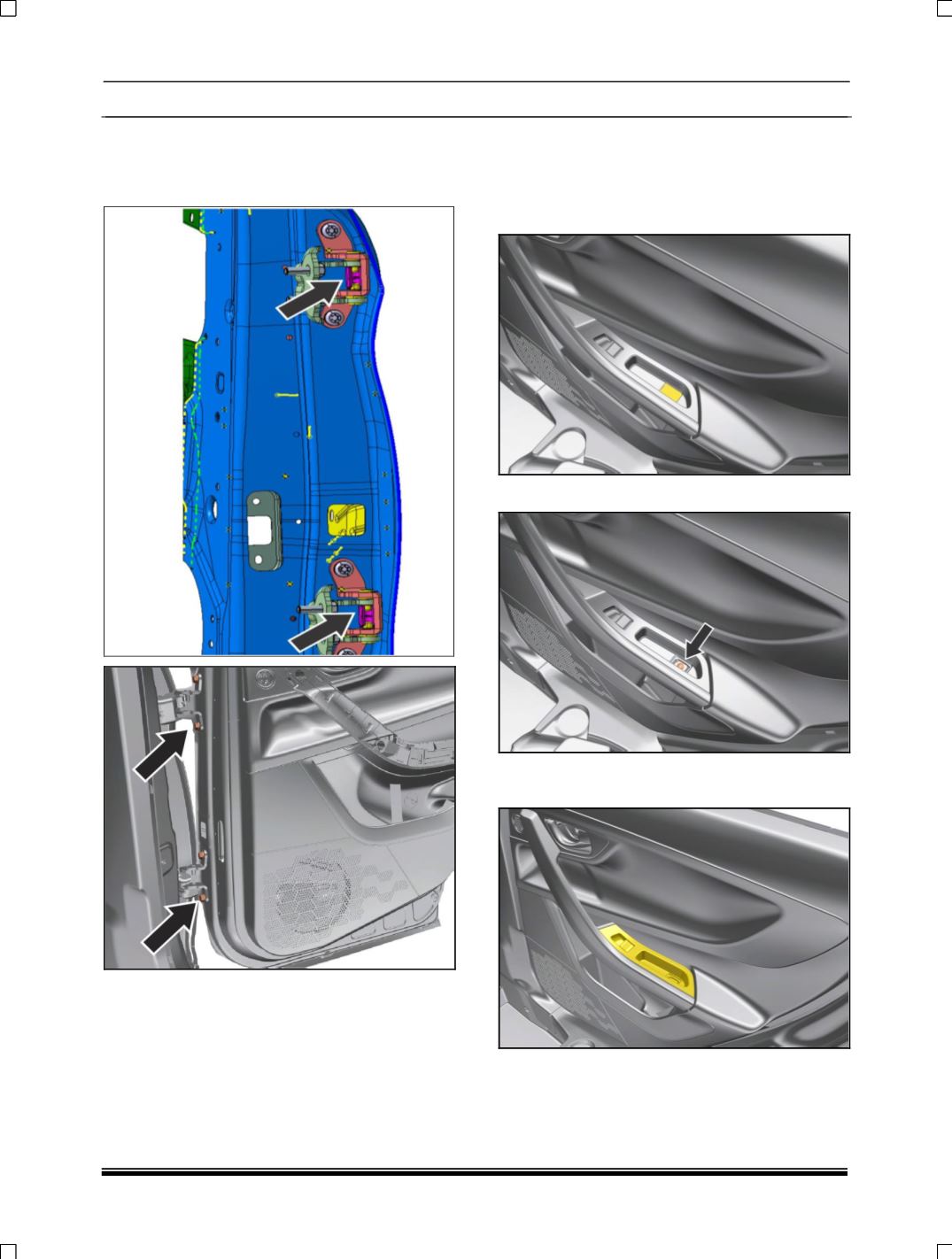

Open the front door, support the rear door from
below and remove Hinge locking clip between
the hinges and lift off the door .and four
mounting bolt from door side.
5. Slowly pull out the door and pull out the wiring
harness carefully which was disconnected
earlier.
FITMENT
For fitment follow the reverse procedure of
removal.
4.15. REAR DOOR TRIM
REMOVAL
1. Open the Door.
2. Pull out Pull cup Cap.
3. Remove mounting screw below Pull cup Cap.
4. Insert wedge pin and remove switch bezel pull
cup.
5. Disconnect the window winding connection and
remove the switch.
