FATC
25

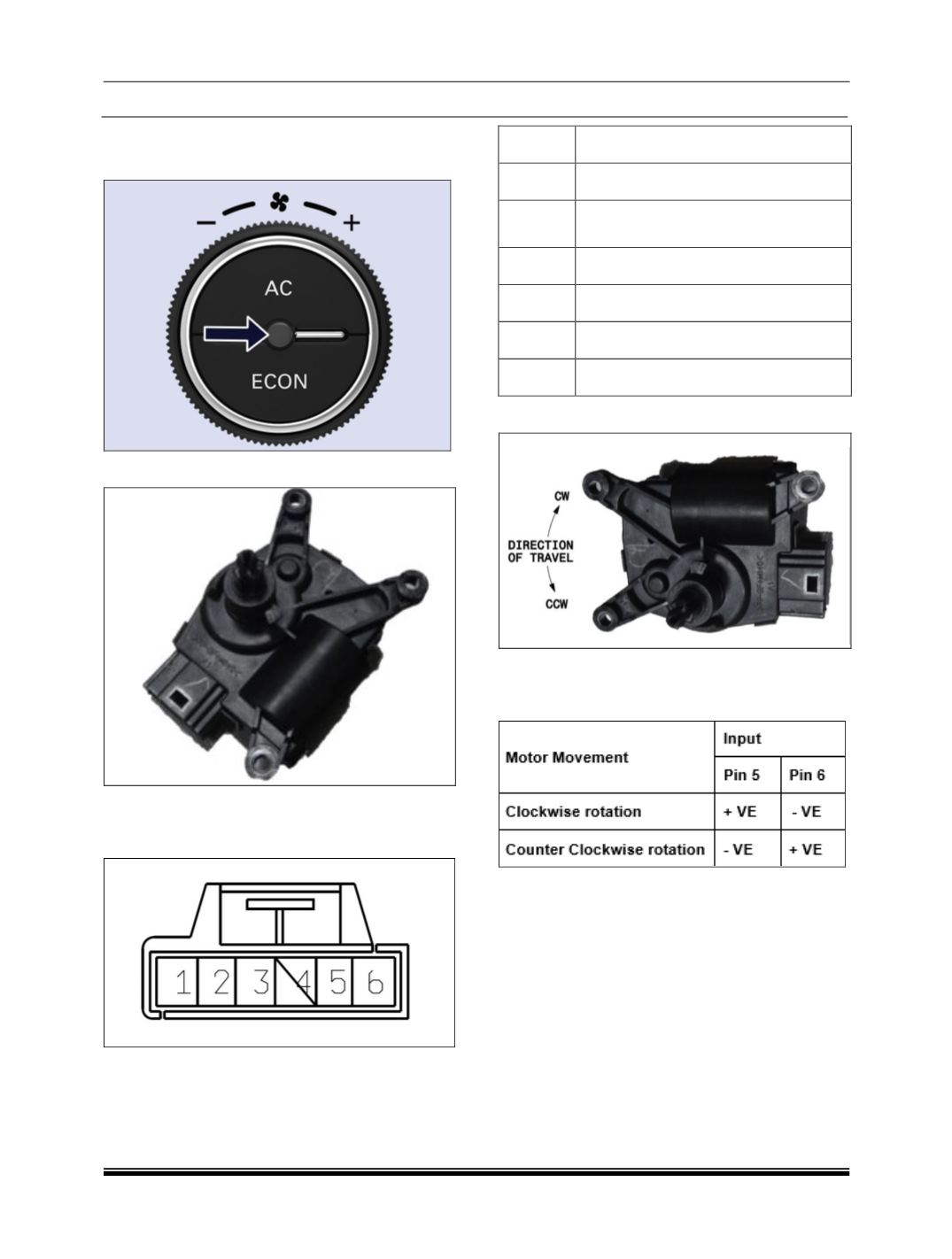

F. IN-CAR SENSOR
In-car sensor on control panel.
G. AIR INLET ACTUATOR
The actuator used to operate the air intake door. It
controls the air intake door through the air intake
control voltage.
Pin No
Description
1
Potentiometer connection (-ve)
2
Feedback connection to control panel
3
Potentiometer connection (+ve)
4
Not used
5
Actuator motor connection
6
Actuator motor connection
INSPECTION
When 12.0V supply is given to pin 5 and pin 6, the
movement of actuator should follow the following
table.
