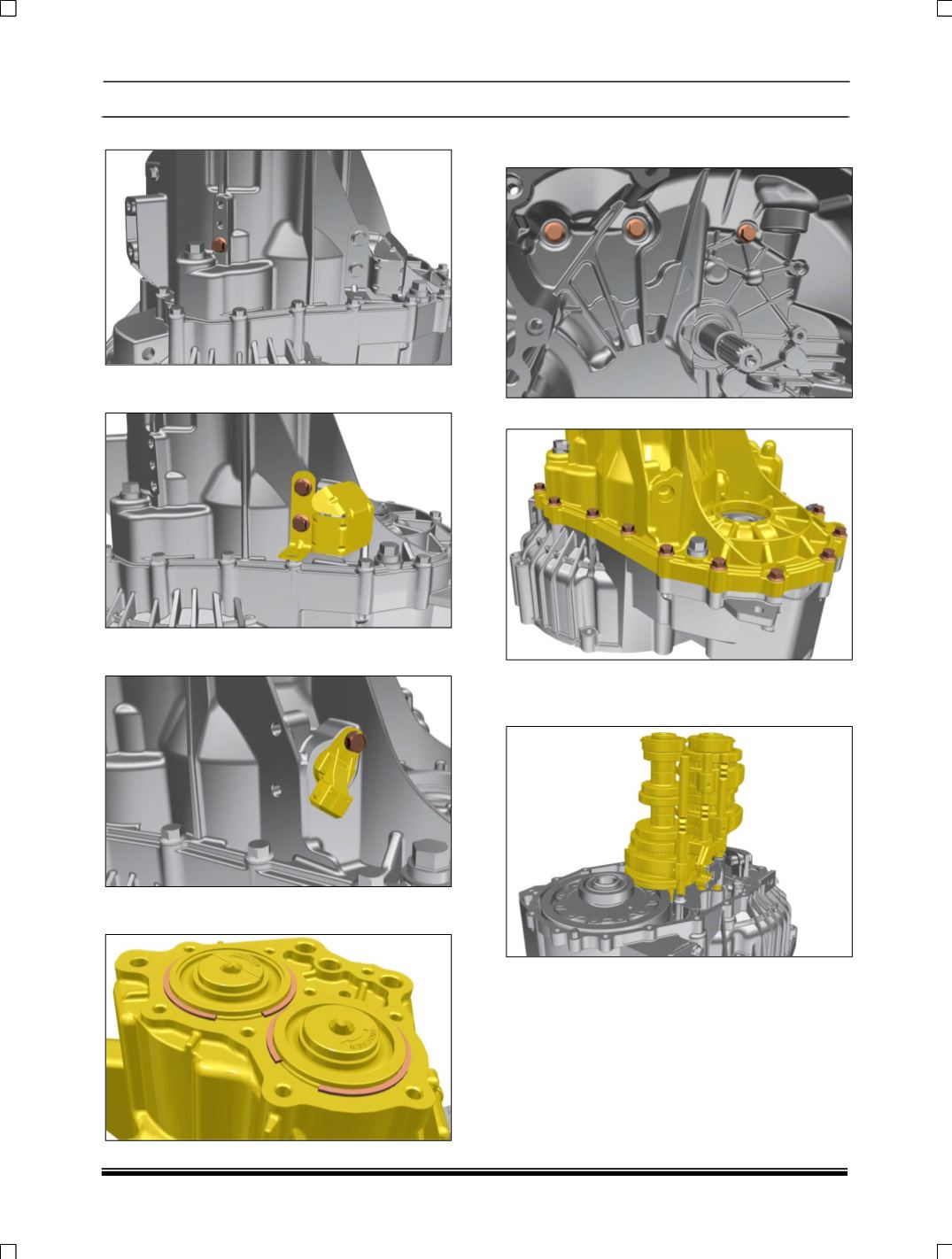

15. Remove Hex FL bolt M8X25 for Reverse Idler.
16. Remove H/FL SCREW M8X12 & take out
stone guard bracket.
17. Remove hex screw M6X18 & take out clutch
speed sensor.
18. Remove snap ring on deep groove ball
bearing as shown
19. Remove three Hex FL Bolt M8X45.from inside
from front housing half.
20. Remove Hex FL Bolt M8X45 (13 nos).
21. Take out input shaft gear assembly, Lay shaft
gear assembly & reverse shaft gear assembly
as shown.
