TRANSAXLE TA6300 AMT
41

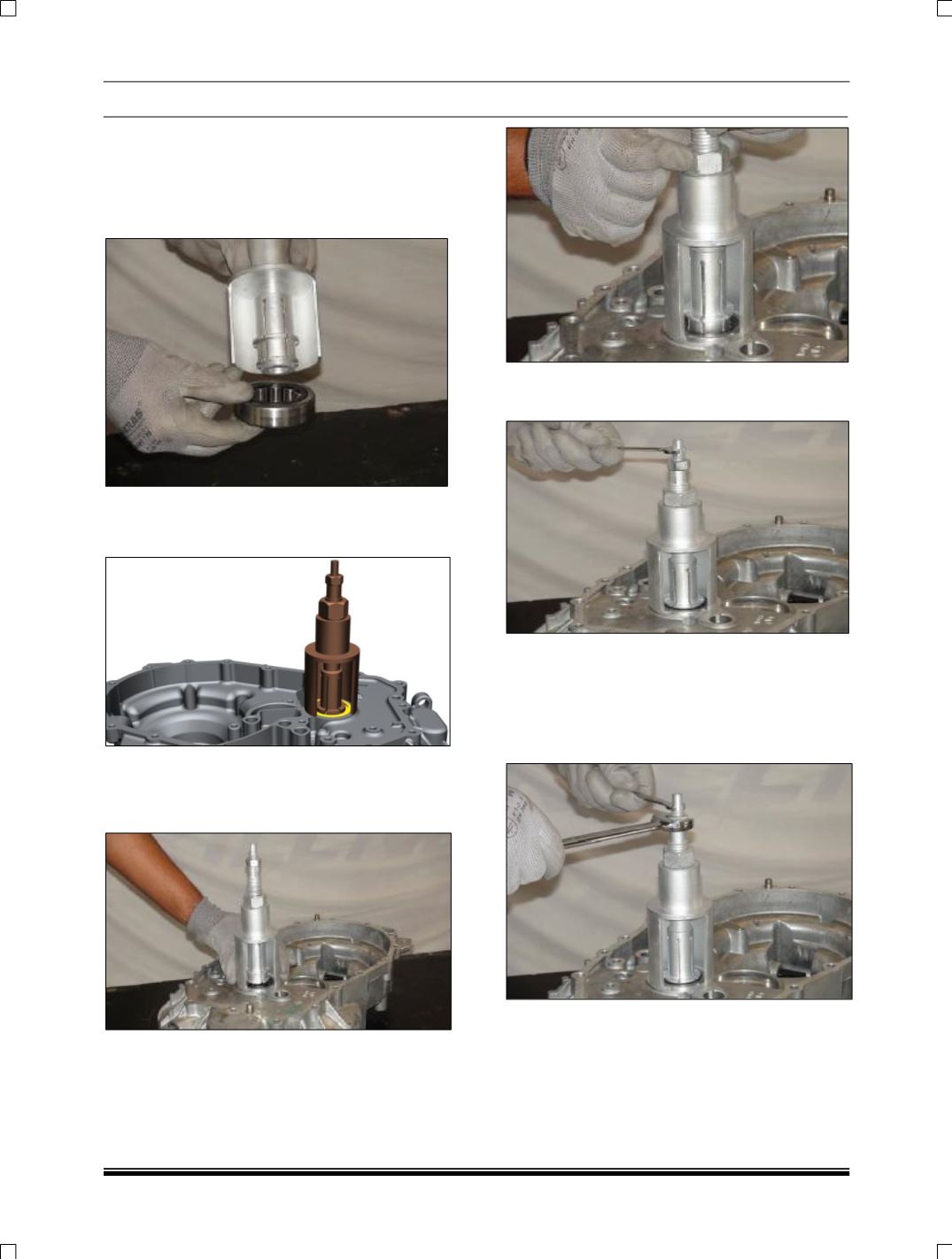

Once the bearing comes out, unlock the
anchoring shaft by turning the locking nut
anticlockwise on the top and slowly tap on the
locking stud down to unlock the bearing from
anchoring body and to remove bearing from
the tool.
27. Remove Outer race cylindrical roller bearing
of Input shaft from front housing with the help
of puller 5438 5890 2618.
PROCEDURE FOR REMOVAL OF INPUT
SHAFT BEARING
Position the transaxle RH side case, facing the
bearing in upward direction.
Take the bearing puller (5438 5809 2618) and
place the outer hub of puller on the machined
surface of transaxle casing, surrounding of the
input shaft bearing.
Rotate the pulling nut 30 mm anticlockwise and
allow anchoring body shaft of puller to get
inserted inside the bearing.
Once the anchoring body is inserted fully, hold
the locking stud on the top using open end
spanner 8 mm and turn the locking nut on the
top slowly using open end spanner 17 mm, few
turns till it gets resistance to rotate.
It allows flaring the anchoring body and gets
lock with bearing rollers.
CAUTION:
Please stop once the shaft is locked, excess
rotation of locking nut may cause damage to
puller of bearing.
Once the anchoring body is locked with
bearing hold the anchoring body shaft at the
top using the open end spanner 18 mm.
