TRANSAXLE TA6300 AMT
36

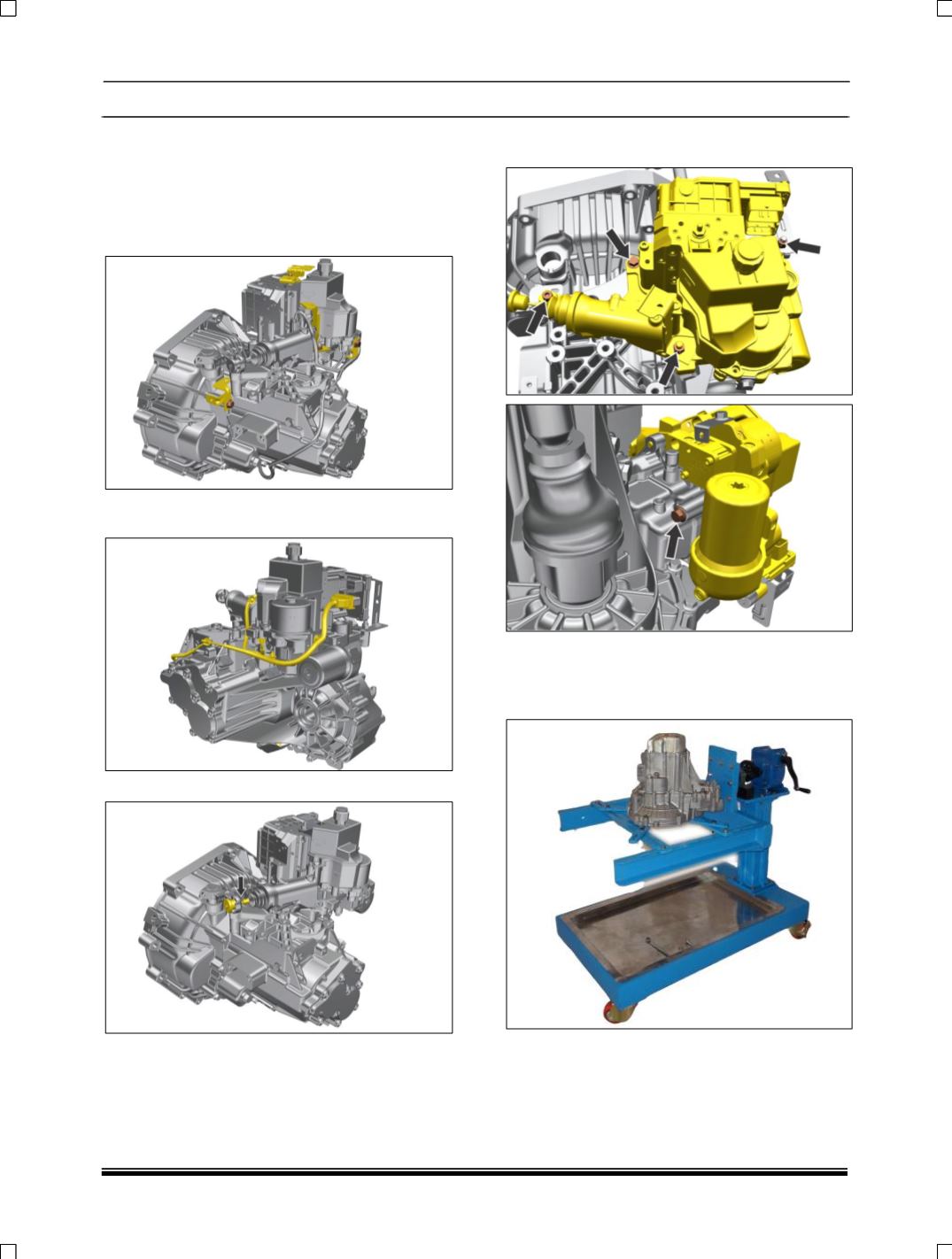

11 TRANSAXLE DISASSEMBLY ON
BENCH:
1. Ensure that oil is drained completely from the
transaxle before mounting on the work stand.
2. Remove domed cap nut & Nyloc nut take out
Brackets as shown
3. Remove all electrical connection from AMT
Kit.
4. Remove clutch interface as shown
5. Remove all mounting Bolts & Nyloc nut from
top & bottom side from AMT kit as shown
6. Lastly take out AMT Kit from Transaxle.
7. Fix the mounting bracket 5425 5890 0603 &
5425 5890 0604 on work stand 5425 5890
0605 by using hex bolt
