TRANSAXLE TA6300 AMT
37

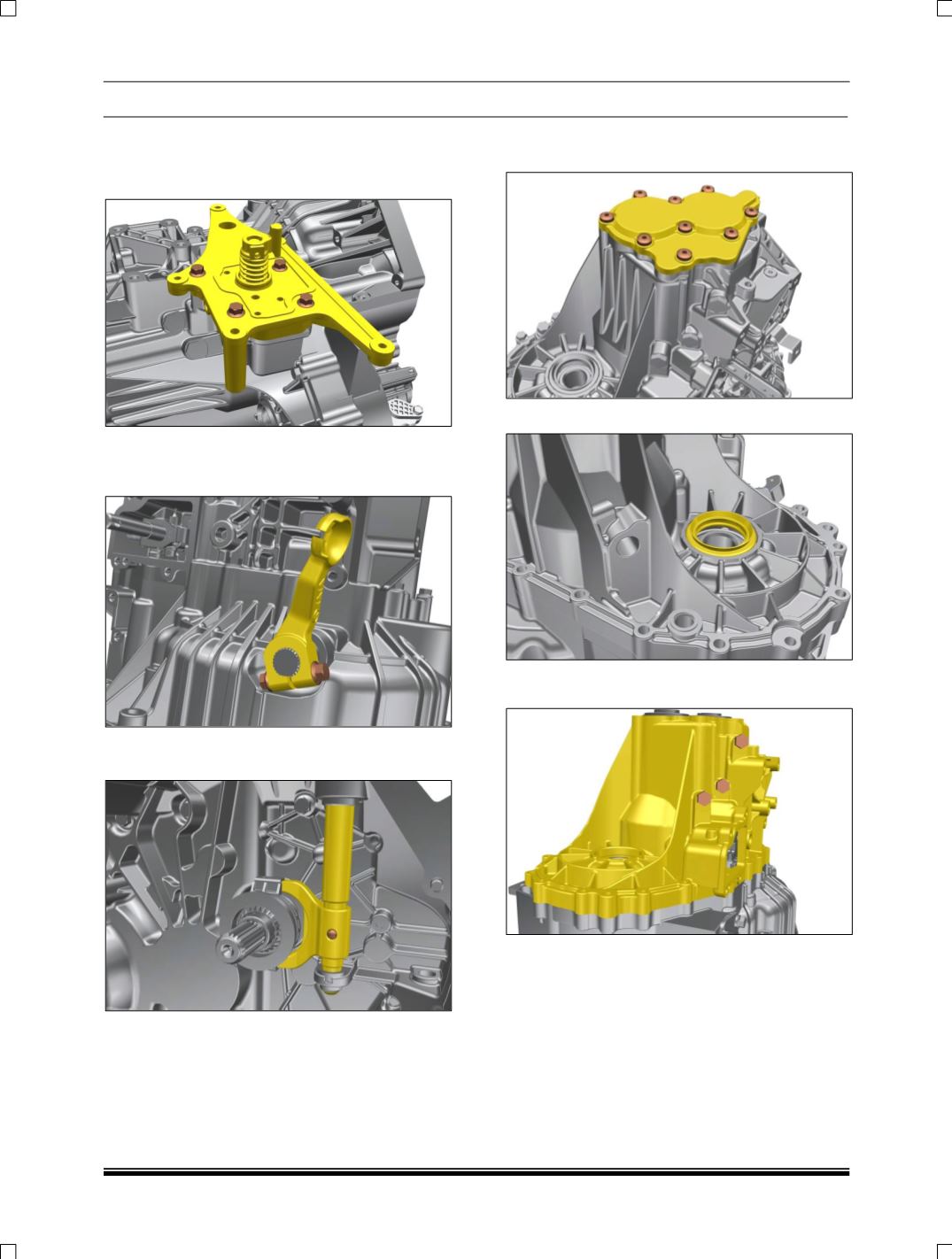

8. Mount transaxle face on mounting plate and fix
it by three hex bolts of M10 size.
9. Remove AMT top cover assembly.
10. Remove hex flanged screw holding release
lever on to release yoke and take out release
lever from release yoke.
11. Remove grooved pin & disconnect Clutch
release shaft & Clutch release Fork.
12. Remove mounting screw of rear cover & take
out rear cover.
13. Remove Oil Seal of drive shaft.
14. Remove DETENT ASSY (SHIFTER SHAFT)
& take out housing, Rear half.
