NEXON BSVI - SERVICE MANUAL

TRANSAXLE TA6300 AMT

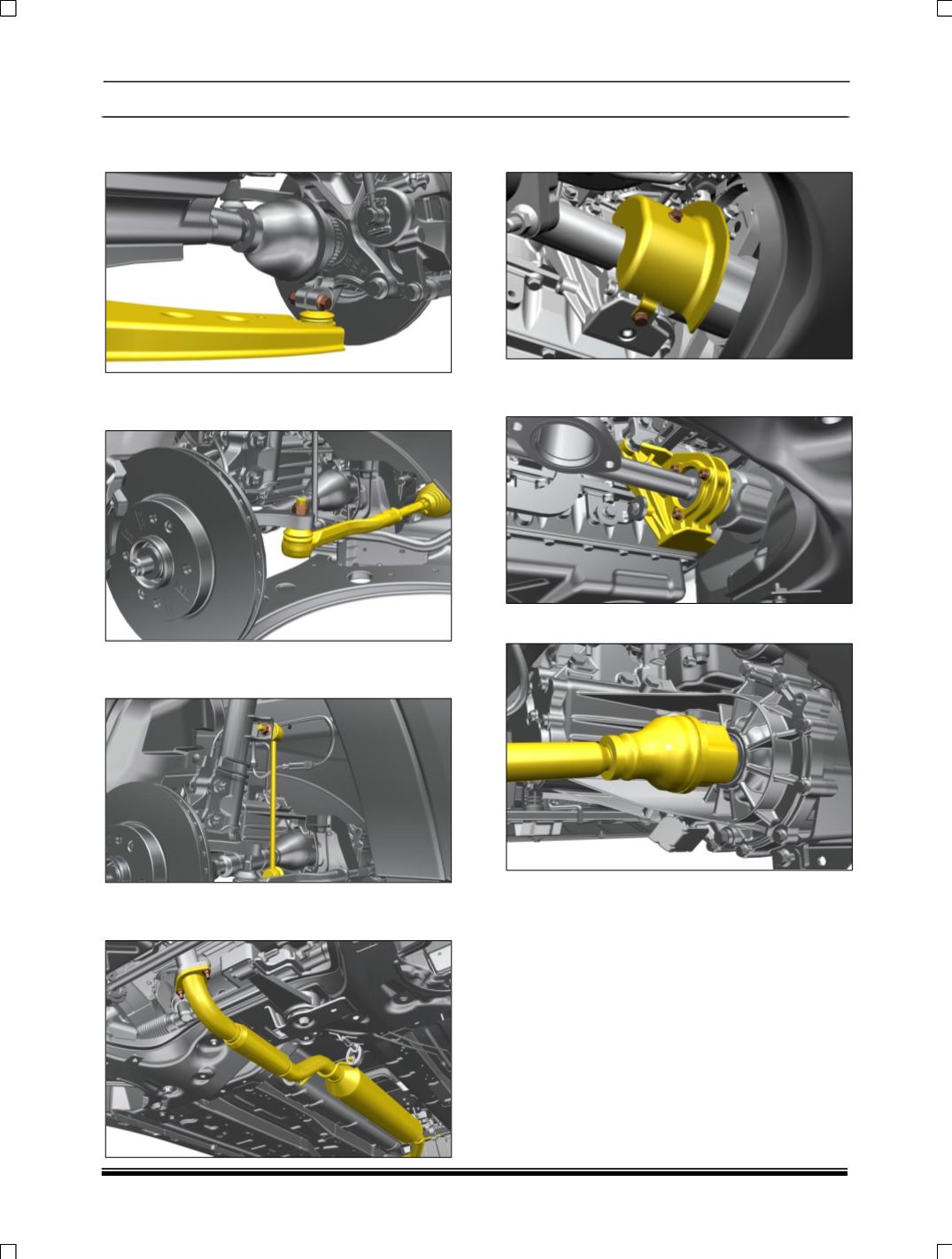

15. Remove stub axle ball joint Mounting &

Loosen Lower Control Arm on LH & RH side.

16. Remove ball joint (steering rack) from

steering knuckle from both sides.

17. Remove vertical link mountings on

suspension rod for both RH & LH sides.

18. Remove pre silencer Assy with pipe, front &

outlet pipe.

19. Remove 2 mtg bolt of intermediate shaft heat

shield & take out heat shield.

20. Remove 3 allen bolt of intermediate shaft &

take out Drive shaft from driver side.

21. Remove Drive shaft from co-driver side.

NOTE:

are should be taken not to damage driveshaft

oil seal and its boots (do not use hammer)

CAUTION:

Do not pull drive shaft excessively as the

plunge joint will come out of housing and

damage the boot Pry. Plunge joint housing for

taking out joint out of splines. Do not place the

CV drive shaft on rough / uncleaned surfaces.

This might damage the drive shaft boot.
