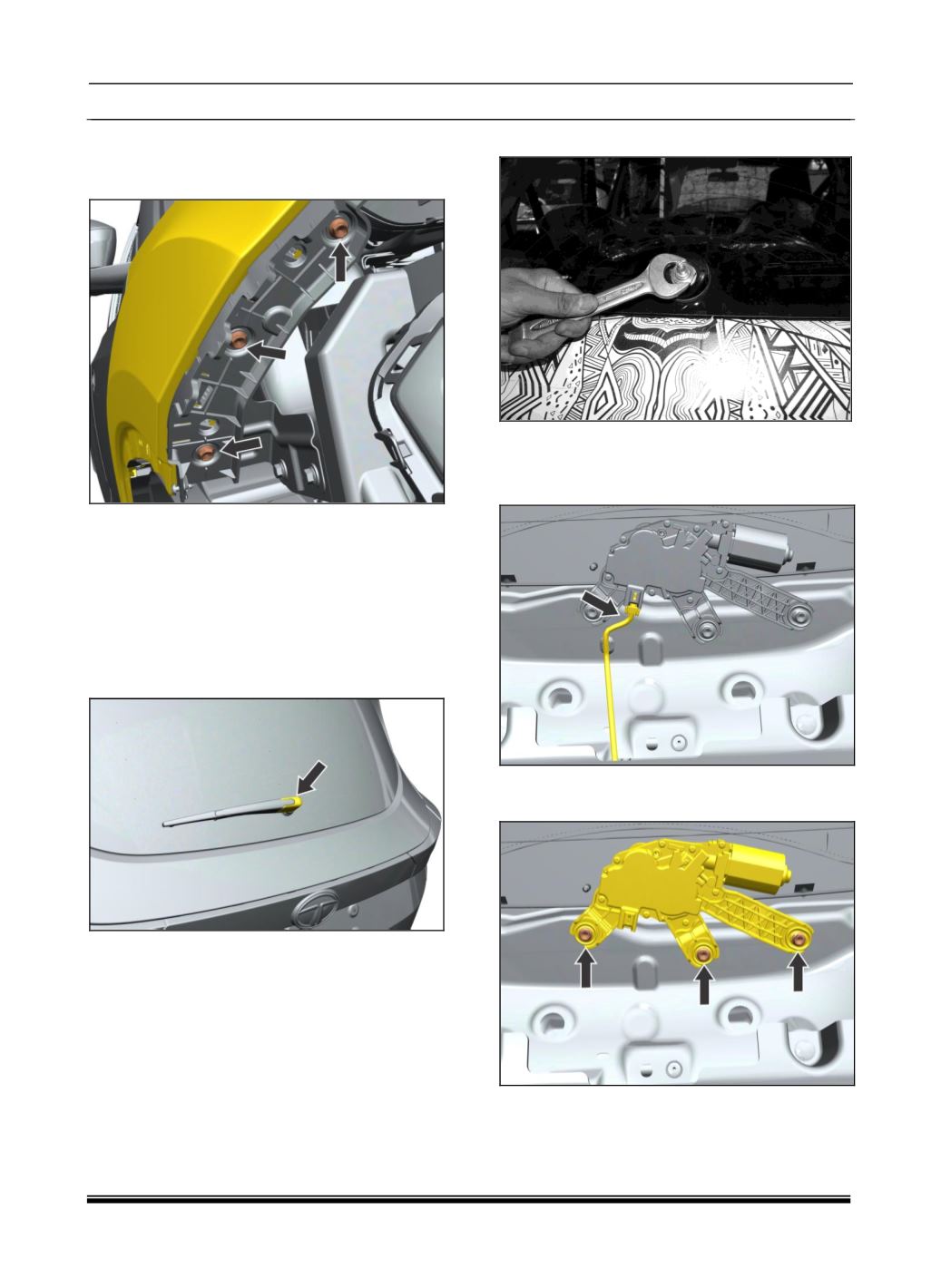

8. Loosen and remove top mounting screw as
shown in figure.
9. Remove front mounting screw.
10.Remove front fender assembly.
FITMENT
For fitment follow reverse procedure of removal.
1.4.44 REAR WIPER MOTOR
REMOVAL
1. Open the cap of rear wiper blade and arm
assembly as shown in figure.
2. Loosen and remove rear wiper blade and arm
assembly mounting fastener.
3. Remove rear wiper blade and arm assembly.
4. Remove outside wiper motor mounting nut.
5. Remove tail gate trim. (For procedure Refer
Tailgate Trim removal process.)
6. Disconnect wiper motor connector.
7. Loosen and remove three wiper motor fastener
to remove wiper motor.
FITMENT
For fitment follow reverse procedure of removal.
