BODY

58

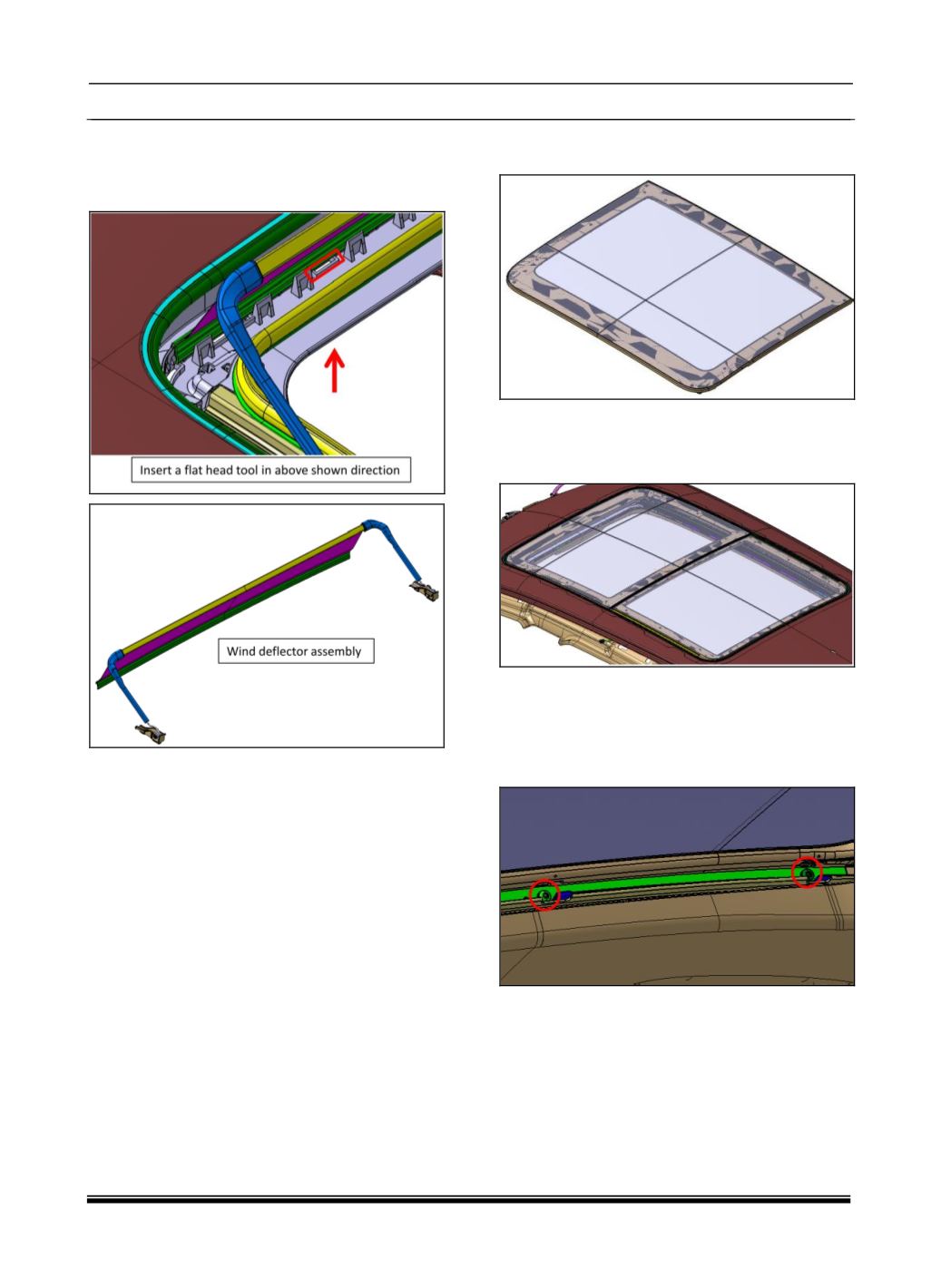

3. Remove the wind deflector Net. Insert a flat

head tool inside the front Part moulding from

bottom as shown, unlock deflector net snaps

to release from the Front part moulding.

FITMENT

For fitment follow reverse procedure of removal.

1.4.48 FRONT GLASS PANEL (MOVING

PANEL)

REMOVAL

1. Position the Front Glass panel in the Close

position.

2. Press down inner sealing with finger to

expose the screws.

3. Remove the three (3) M5 Screws both the

sides on the glass panel bracket. Remove

glass panel from the vehicle.
