BODY

53



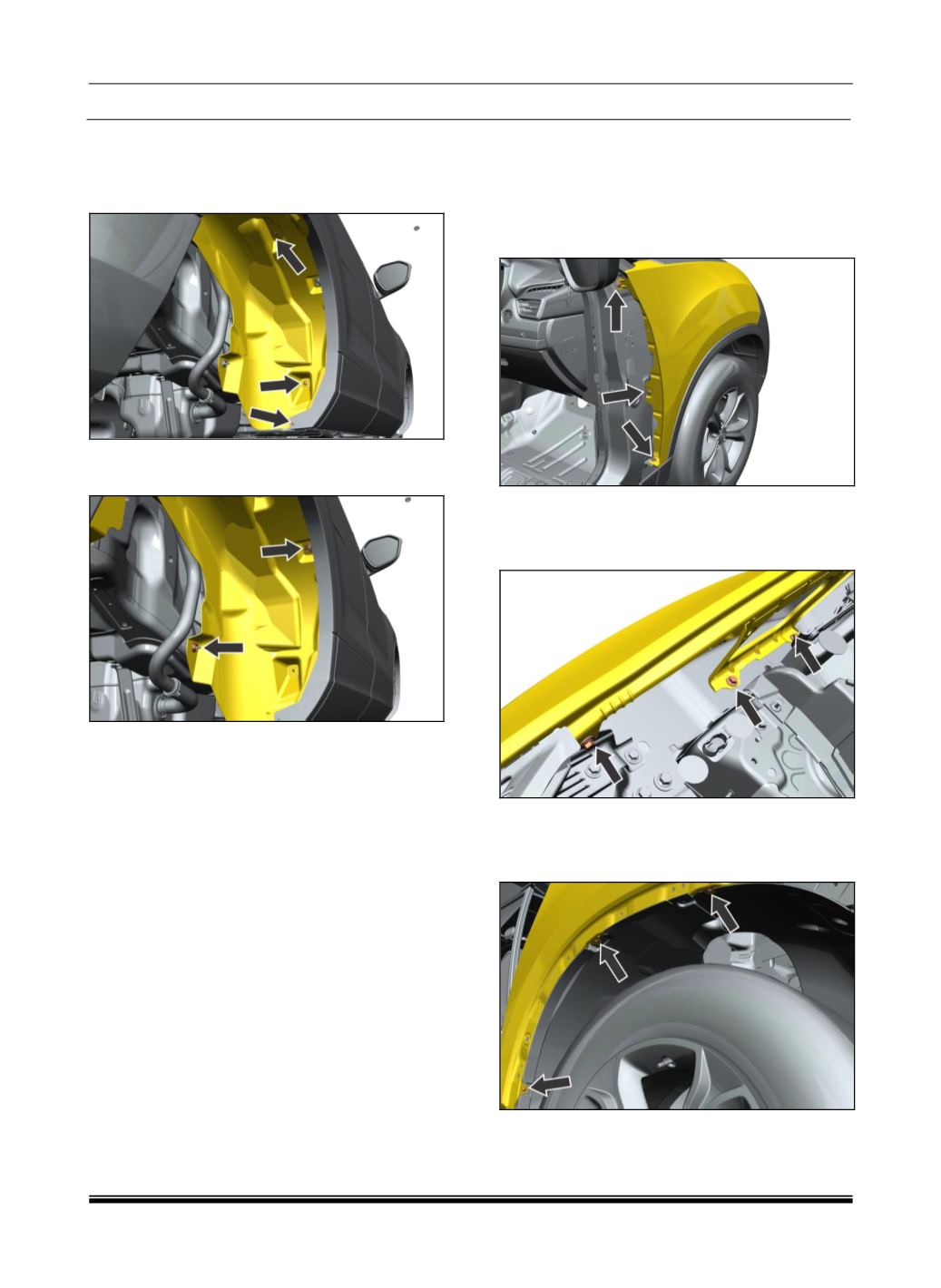

REAR WHEEL ARCH REAR

REMOVAL

1. Remove Rear Bumper mounting screw.

2. Remove three Push on Nuts located inside

rear wheel arch.

3. Remove Rear wheel arch rear.

FITMENT

For fitment follow reverse procedure of removal.

1.4.43 FRONT FENDER

REMOVAL

1. Remove front door. (For procedure refer front

door removal removal)

2. Remove fender mounting bracket bolt.

3. Open the Bonnet.

4. Pull out Side Plenum Cover Remove top

mounting screw.

5. Remove front wheel arch liner. (For procedure

refer front wheel arch liner removal process.)

6. Remove lower mounting screw.

7. Remove front Bumper. (For procedure refer

Front Bumper removal process.)
