BODY
48

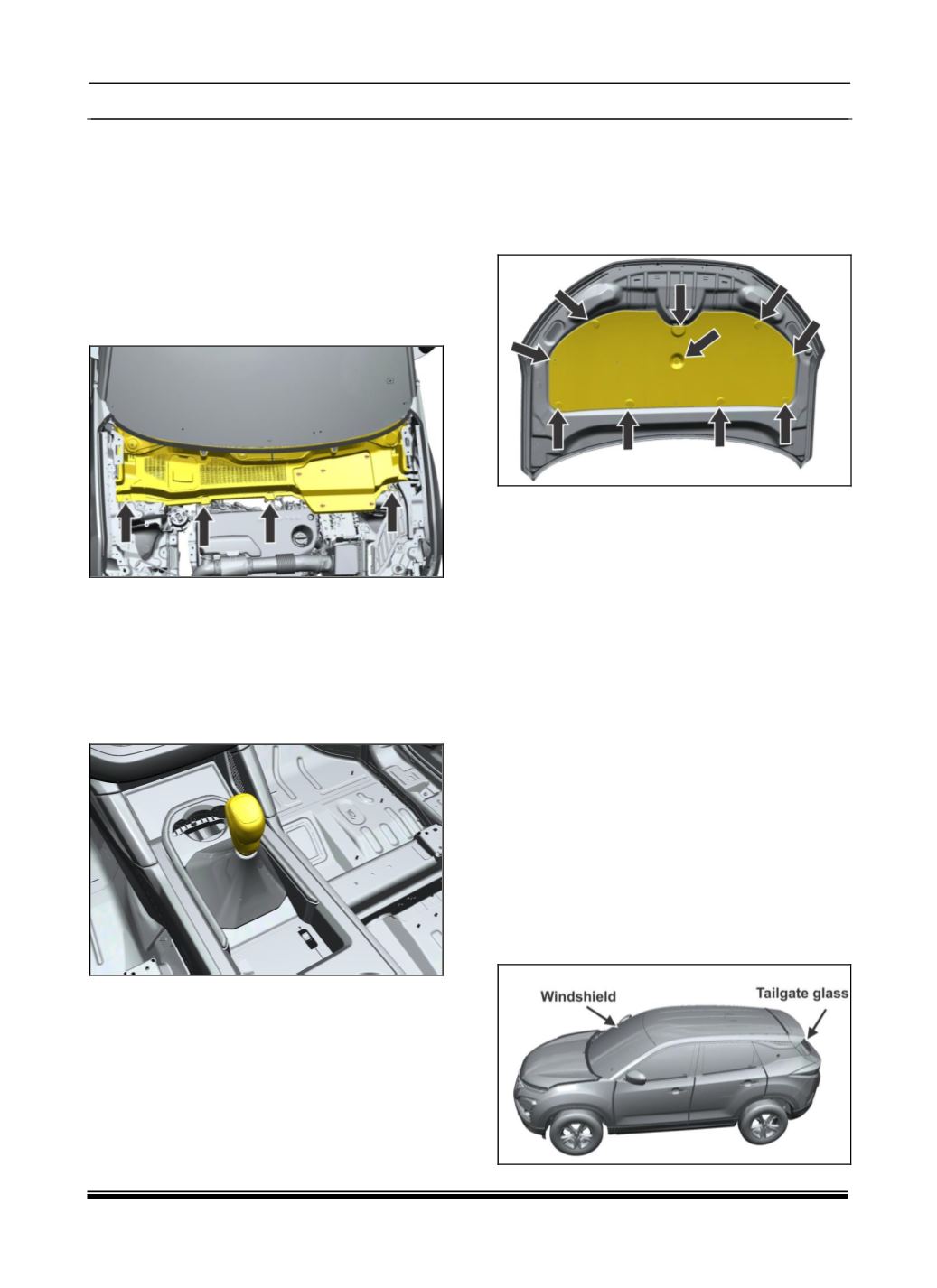

1.4.36 PLENUM COVER:
REMOVAL
1. Open the Bonnet.
2. Disconnect the negative terminal of battery.
3. Remove both front wiper arm and blade
assembly. (R
efer wiper arm and blade
assembly removal process
).
4. Pay out seven Grommet pin and pull out
plenum cover ,
FITMENT
For fitment follow reverse procedure of removal.
1.4.37 GEAR LEVER BOOT
REMOVAL
1. Pull out the rubber knob from GEAR SHIFT
UNIT
2. Remove the Lather boot from the gear shifter
lever.
FITMENT
For fitment follow reverse procedure of removal.
1.4.38 BONNET INSULATION
REMOVAL
1. Open the bonnet.
2. Pull out the insulation from the bonnet
assembly.
FITMENT
For fitment follow reverse procedure of removal.
NOTE
While pulling out the Bonnet insulation, care
should be taken such that clips do not get
damage if found damaged replace the same with
the new one
1.4.39 GLASS
FIXING OF WIND SCREEN GLASS & TAIL
GATE GLASS
The glasses are directly pasted to sheet metal
flanges using sealant. We give below the
Equipment / materials required and the procedure
for fixing the Wind screen and Backlight glasses.
EQUIPMENTS REQUIRED:
1. Pneumatic applicator gun with holding
arrangement for sealant cans.
2. Vacuum cups for holding glasses.
3. Tensioner Belt for holding Rear Quarter Fixed
glass.
