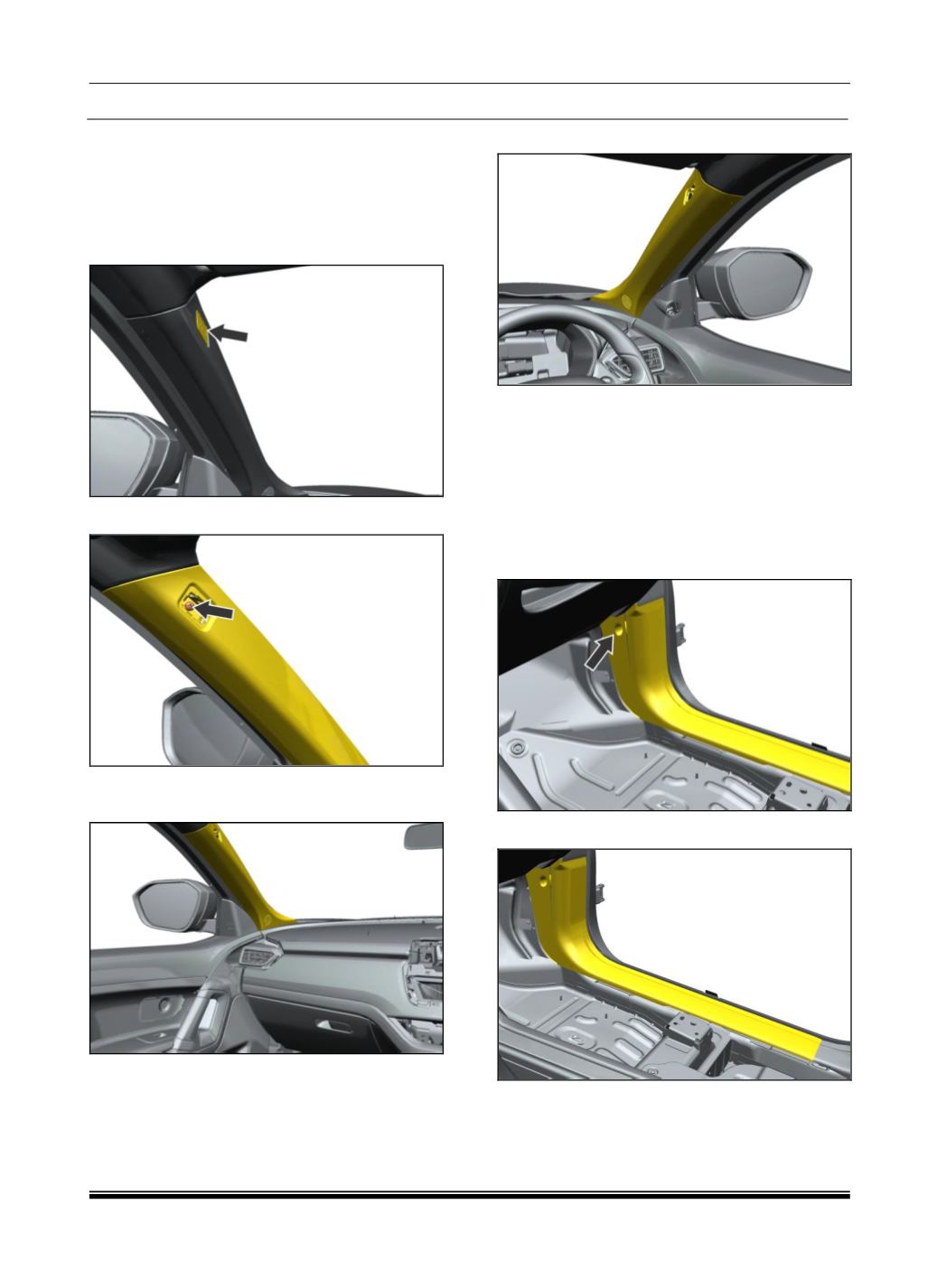

1.4.27 “A” PILLAR TRIM:



“A” PILLAR UPPER TRIM

REMOVAL

1. Remove door beading at A Pillar trim location.

2. Pull A Pillar trim cap from upper locater.

3. Remove the screw of A pillar.

4. Pull A Pillar trim from upper locater. LH and

RH side

5. Pull “A” Pillar trim bottom snaps from slots.

6. Remove A pillar trim.

FITMENT

For fitment follow reverse procedure of removal.

1.2.28. FRONT SCUFF PLATE

REMOVAL

1. Open door.

2. Remove the screw on lower trims.

3. Pull out A Pillar lower trim.

FITMENT

For fitment follow reverse procedure of removal.
