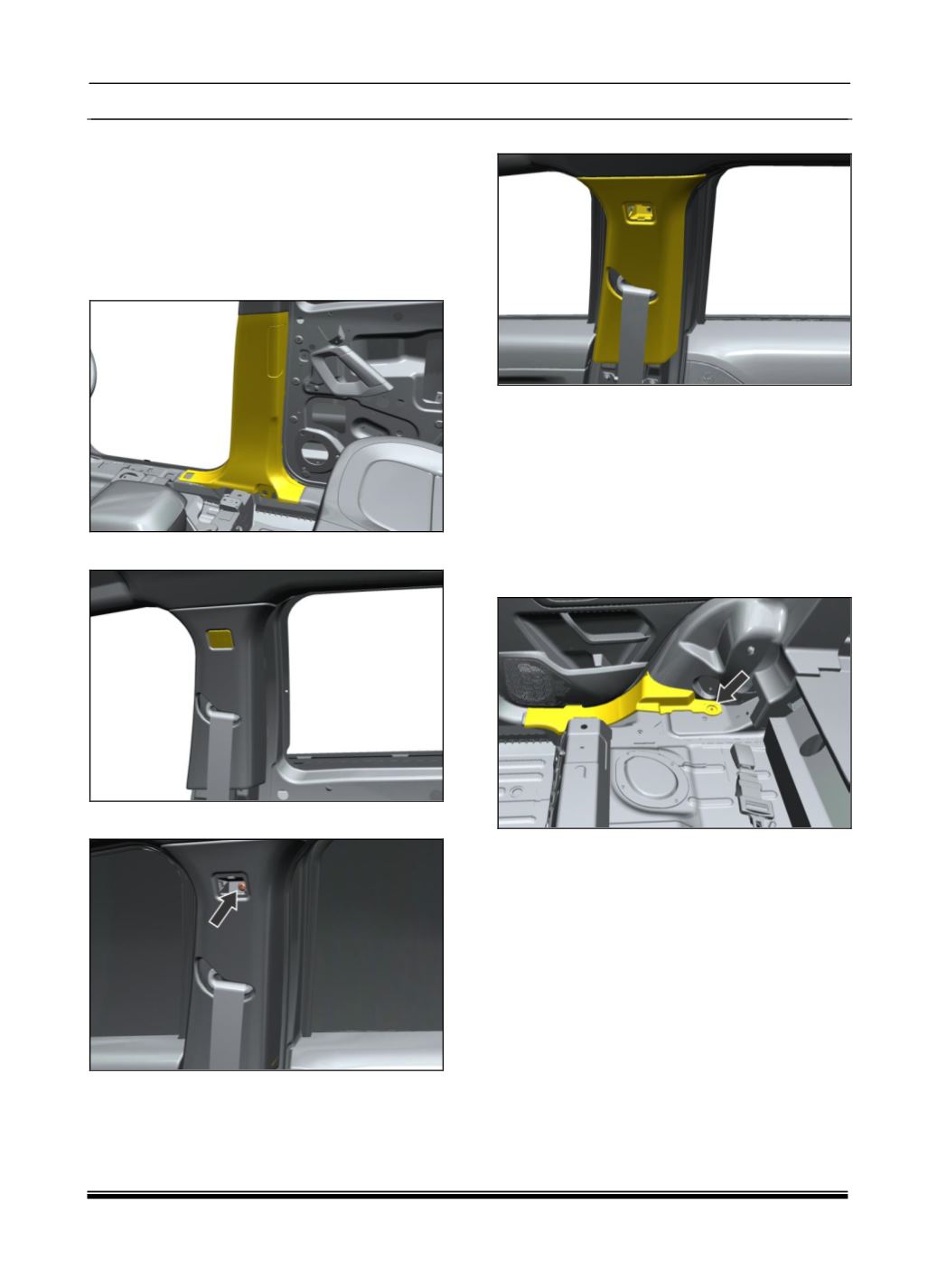

1.4.29 “B” PILLAR TRIMS:

REMOVAL

1. Remove door Beading.

2. Remove seat belt (for removal process refer

seat belt removal process)

3. Unlock B pillar lower trim from upper trim and

Pull out B pillar lower trim.

4. Pull out the B pillar cap.

5. Remove the screw of B pillar trims

6. Pull out B Pillar upper trim.

FITMENT

For fitment follow reverse procedure of removal.

1.2.30.REAR SCUFF PLATE

REMOVAL

1. Remove rear seat (for removal process refer

rear seat removal process).

2. Remove the mounting screw of rear scuff

plate and pull out
