NEXON BS VI - SERVICE MANUAL

TRANSAXLE TA6300

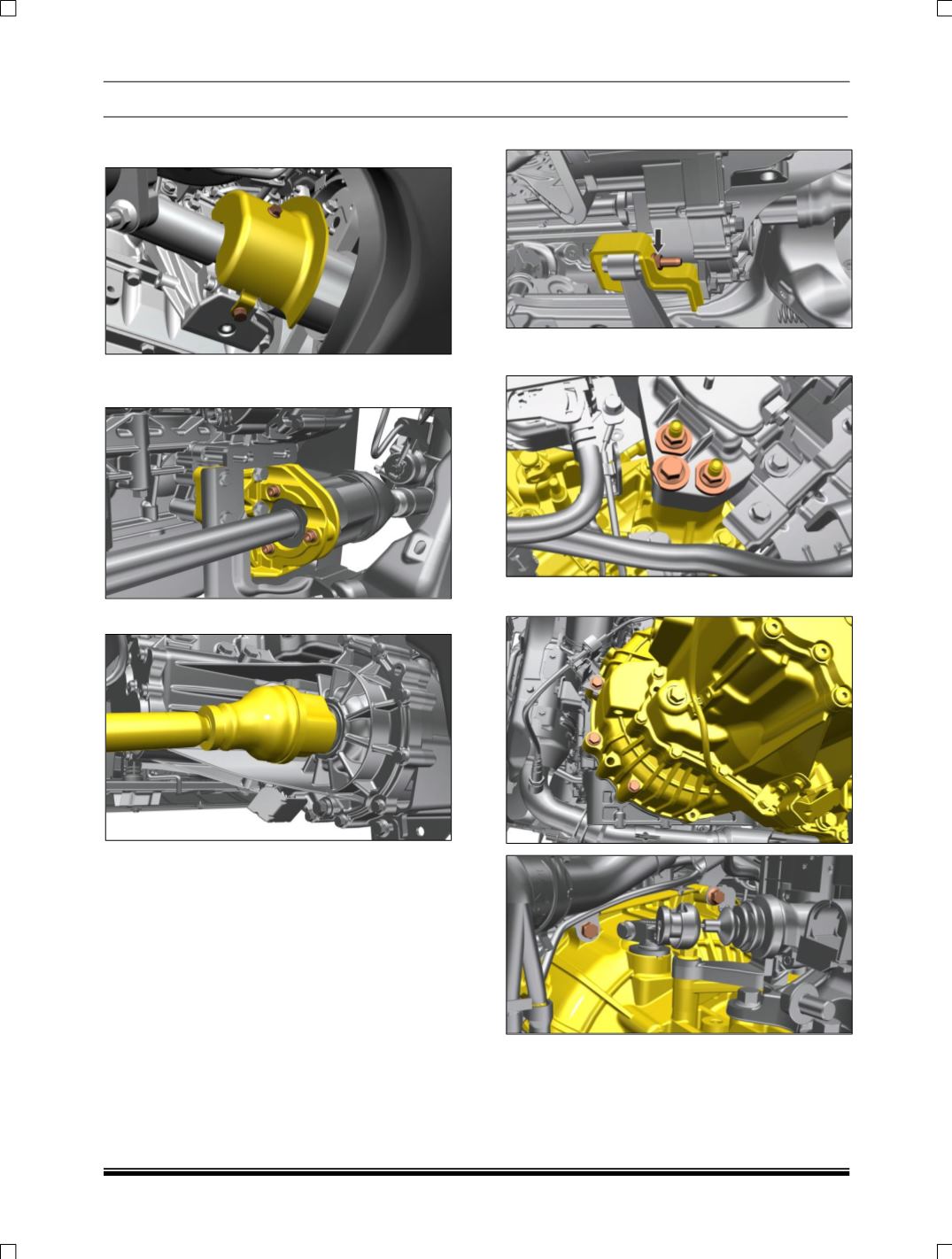

17. Remove 2 mtg bolt of intermediate shaft heat

shield & take out heat shield.

18. Remove 3 allen bolt of intermediate shaft &

take out Drive shaft from driver side.

19. Remove Drive shaft from co-driver side.

NOTE:

are should be taken not to damage

driveshaft oil seal and its boots (do not use

hammer).

CAUTION:

Do not pull drive shaft excessively as the plunge

joint will come out of housing and damage the

boot Pry. Plunge joint housing for taking out joint

out of splines. Do not place the CV drive shaft on

rough / uncleaned surfaces. This might damage

the drive shaft boot.

20. Give support from bottom side of Engine

Assembly

21. Remove fuel line supporting bracket from

clutch housing.

22. Disconnect high-pressure hose assy. from

clutch release lever.

23. Disconnect ‘C’ mount bracket bolt.

24. Loosen and remove B Mount Bracket. With

rubber pad.

25. Remove clutch housing mounting bolts.

26. Finally take out Gear box Assembly from

vehicle.

INSTALLATION:

Follow the reverse procedure of Assembly of

Transaxle on Vehicle
