TRANSAXLE TA6300
24

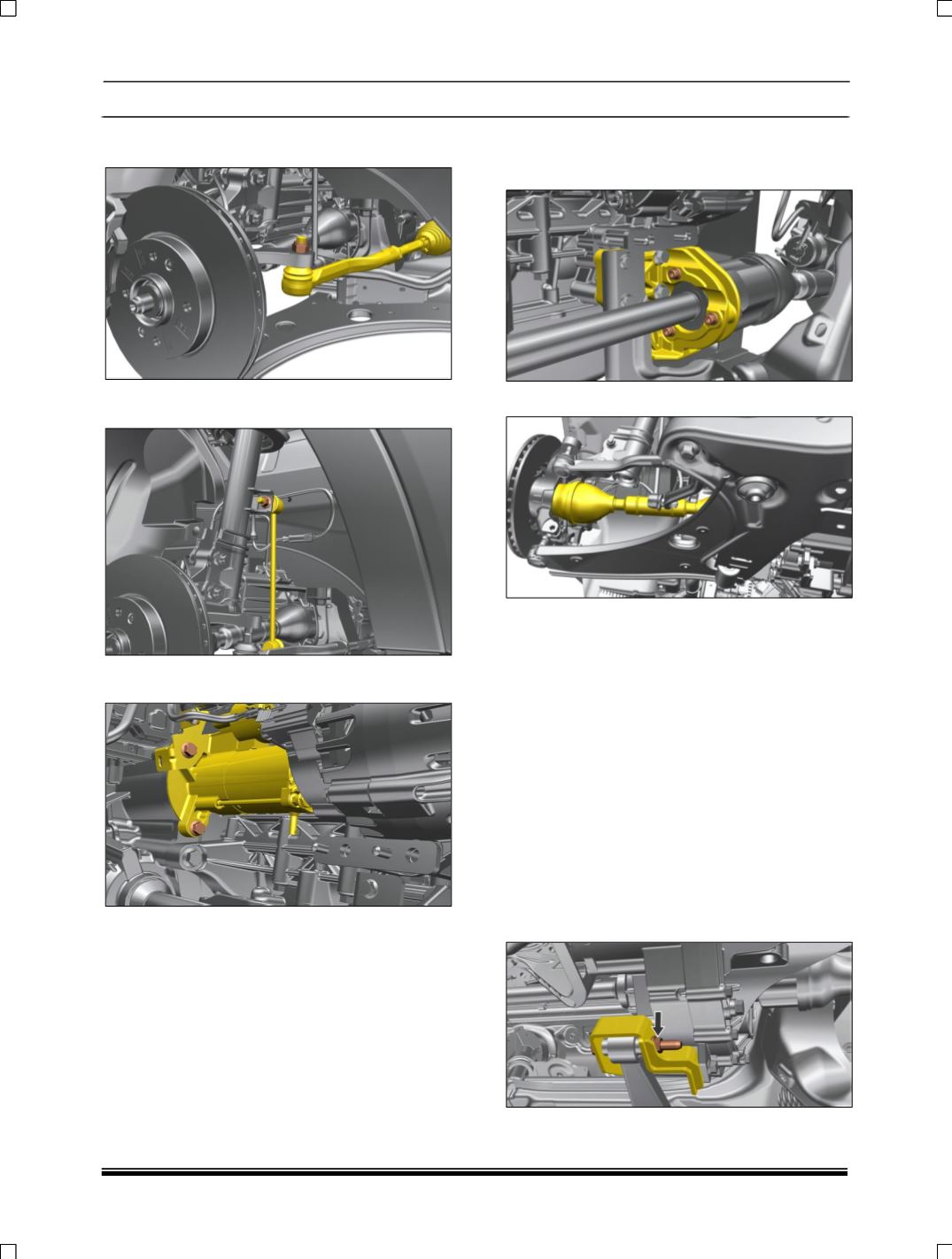

11. Remove ball joint (steering rack) from steering
knuckle from both sides.
12. Remove vertical link mountings on
suspension rod for both RH & LH sides.
13. Remove starter motor connection & its three
mountings & take out starter motor.
14. Disconnect electrical connections of Reverse
Light switch.
15. Disconnect power steering pressure line and
its mounting over transaxle.
16. Disconnect gear shifter cables.
17. Remove 3 allen bolt of intermediate shaft &
take out Drive shaft from driver side/Engine
side.
18. Remove Drive shaft from co-driver side.
NOTE:
C
are should be taken not to damage
driveshaft oil seal and its boots (do not use
hammer).
CAUTION:
Do not pull drive shaft excessively as the plunge
joint will come out of housing and damage the
boot Pry. Plunge joint housing for taking out joint
out of splines. Do not place the CV drive shaft on
rough / uncleaned surfaces. This might damage
the drive shaft boot.
19. Give support from bottom side of Engine
Assembly
20. Remove fuel line supporting bracket from
clutch housing.
21. Disconnect high-pressure hose assy. from
clutch release lever.
22. Disconnect ‘C’ mount bracket bolt.
