ELECTRICAL
57

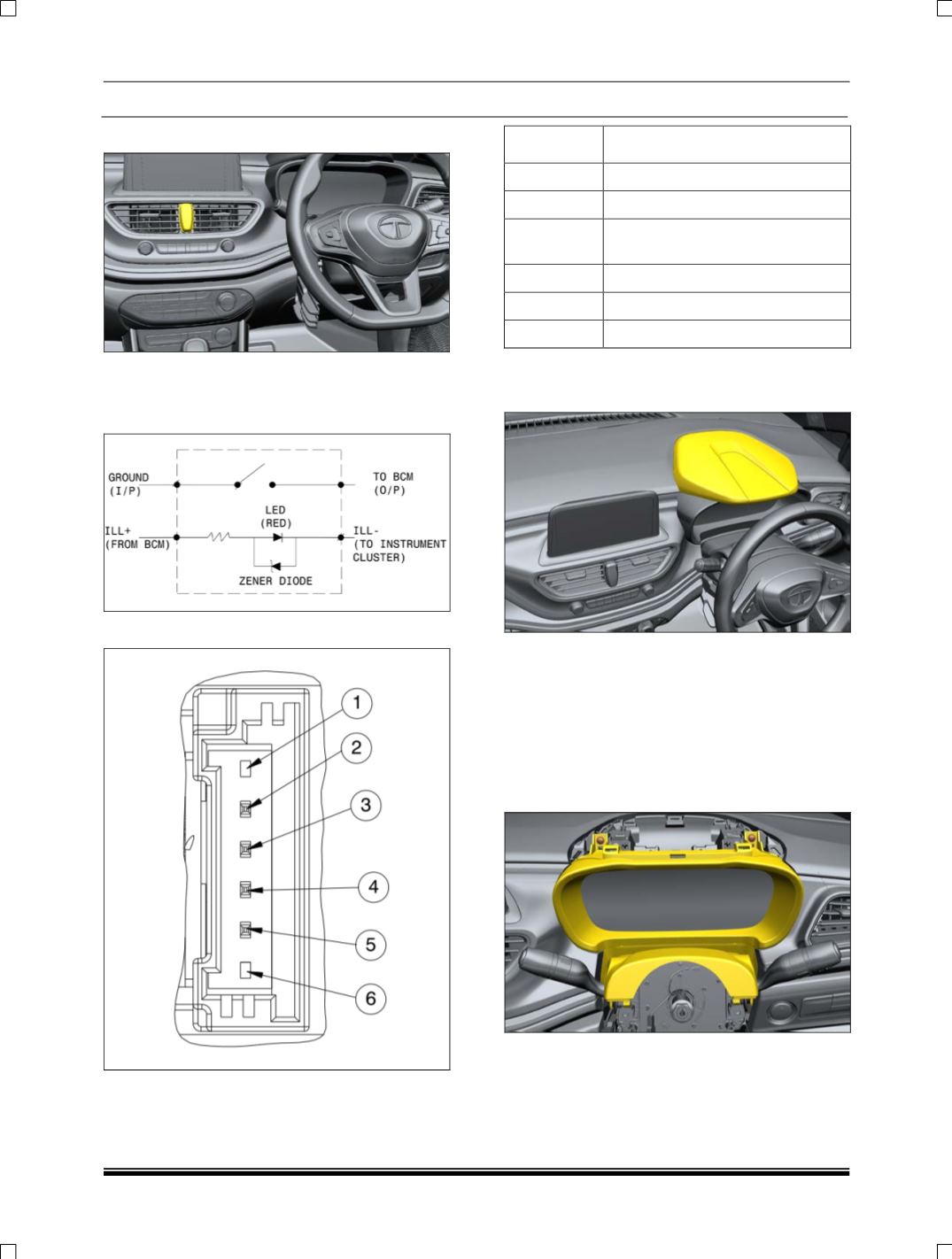

17. HAZARD SWITCH
When the switch is pressed, hazard waning
indicators start flashing.
CIRCUIT DETAILS
PINOUT DETAILS
PIN
DESCRIPTION
1
EMPTY
2
TO BCM
3
ILL-
(TO
INSTRUMENT
CLUSTER)
4
ILL+ ( FROM BCM)
5
GND
6
EMPTY
REMOVAL
1. Pull out Instrumental cluster hood.
2. Remove Steering wheel. (Refer Steering
removal procedure from steering section).
3. Remove Steering nacelle lower. (Refer
Steering nacelle removal procedure from
steering section).
4. Remove the Mounting screw on instrumental
cluster cover. (For procedure, refer instrument
cluster removal process in Electrical section).
