ELECTRICAL
53

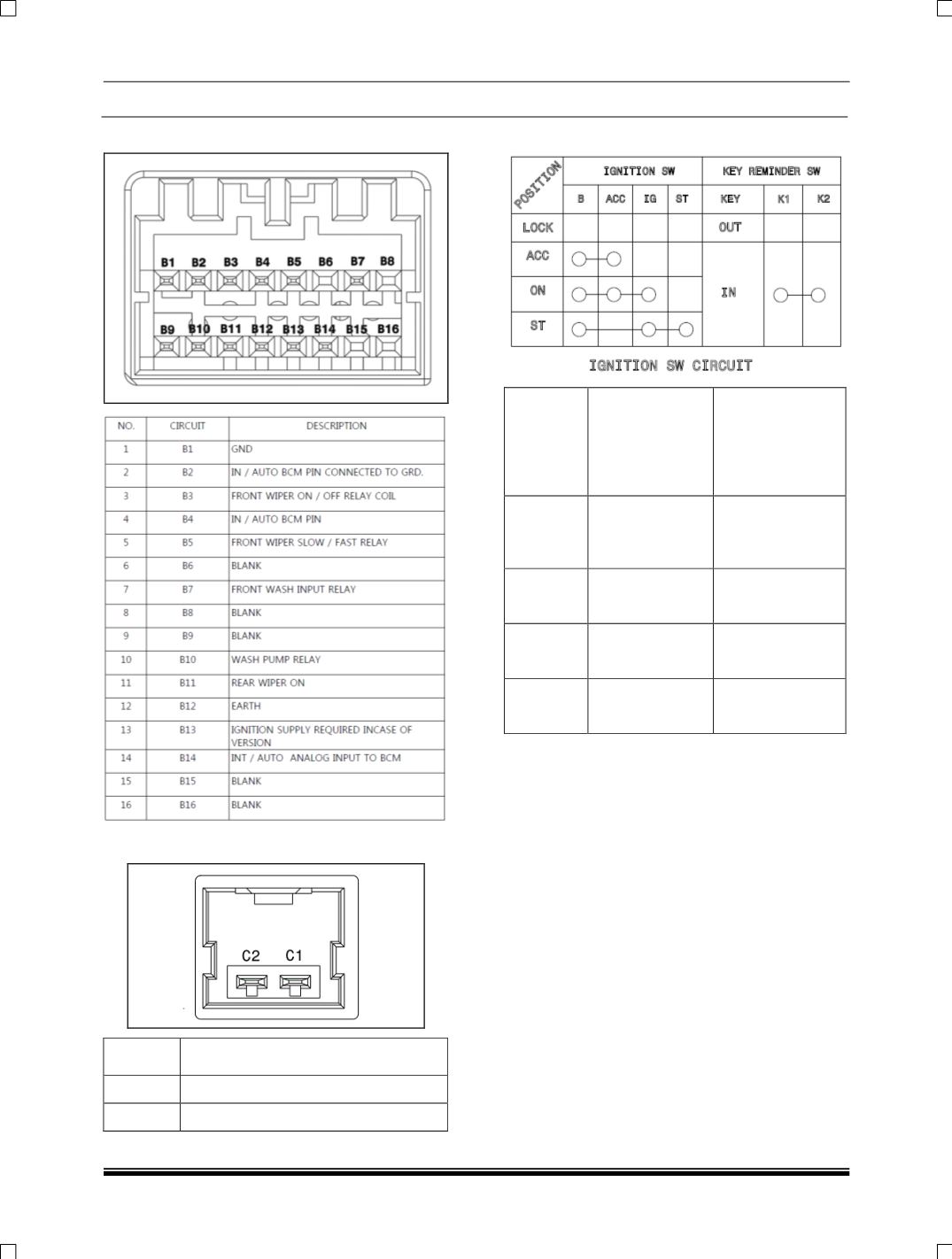

b) Wiper Stalk connector
c)
Horn connector
PIN
DETAIL
C1
To steering wheel for horn (+ve)
C2
To steering wheel for horn (-ve)
CONNECTION DETAIL:
Contacts
Minimum
Permanent
Load Current
at TEMP -30°C
Maxmum
Permanent
Load Current at
TEMP +23°C to
+85°C
Battery –
Keyin
Sensor
10mA
30mA
Battery –
ACC
250mA
2A
Battery –
ON
250mA
2A
Battery –
Start
10mA
250mA
