ELECTRICAL
54

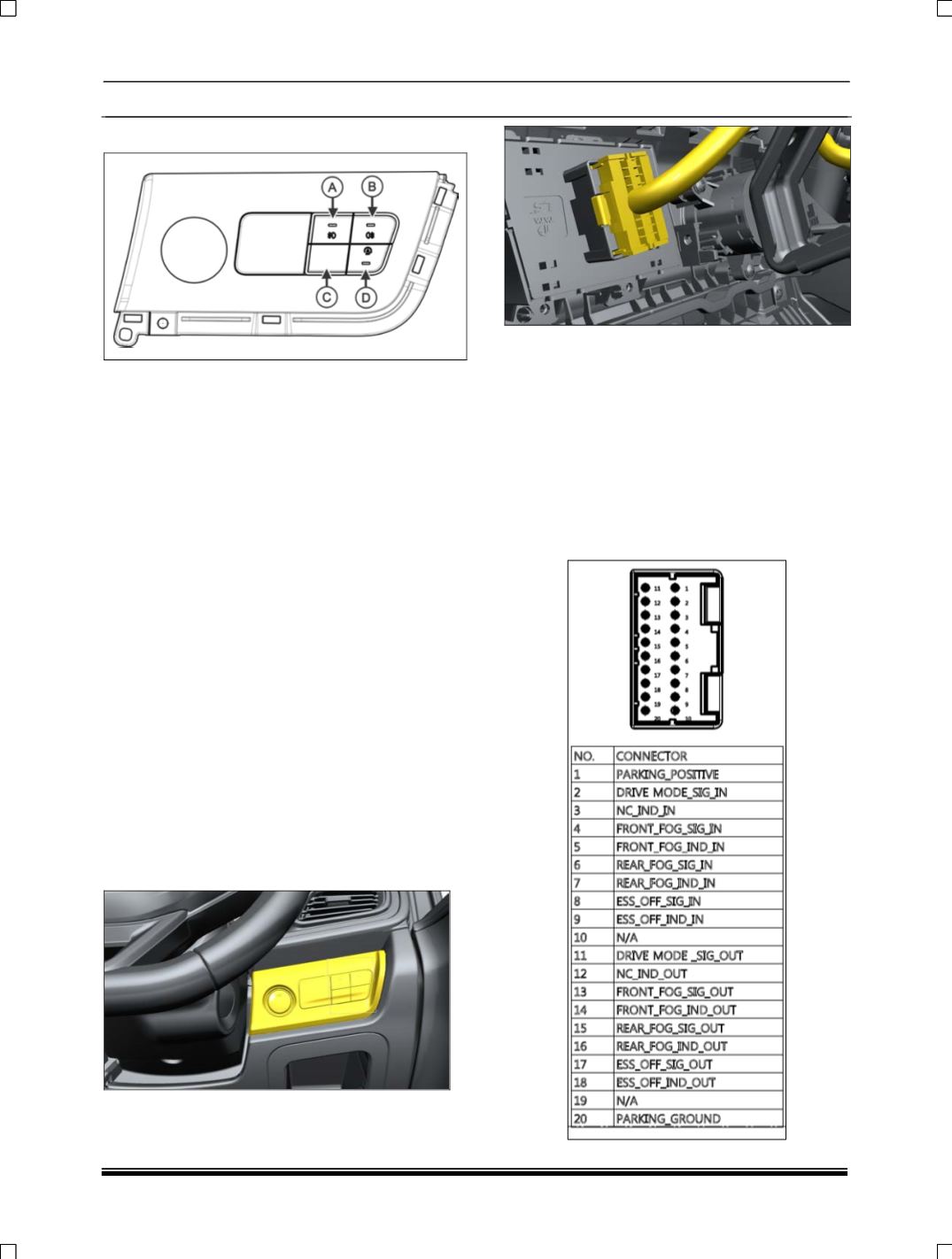

15. FASCIA SWITCHES (IF APPLICABLE)
A. FRONT FOG LAMPS (IF FITTED):
Front Fog Lamps are provided on front bumper to
provide improve divisibility in adverse weather
conditions to avoid accidents when visibility is
poor.
The front fog lamps can be switched ‘ON’ with
ignition and parking lamp ‘ON’ and can remain on
till the parking lamp is switched ‘OFF’.
B. REAR FOG LAMPS (IF FITTED):
The Rear Fog Lamp can be switched ‘ON’ with
Ignition ON, Parking Lamp ON and Front Fog in
ON Condition.
The Rear Fog Lamp can be switched ‘ON’ with
Ignition ON & Parking Lamp ON and can remain
‘ON’ till the parking lamp is Switched OFF.
C. DUMMY KNOB
D. AUTOMATED ENGINE START-STOP (ESS)
OFF SWITCH (IF EQUIPPED)
In fascia switch one Push type non-Latch switch
available to off the ESS function.
For detail Refer Starting and Driving Section.
FASCIASWITCH PANEL REMOVAL
1. Carefully pry out fascia switch panel
2. Disconnect electrical connection from the
fascia switch assembly.
3. Take out the fascia switch panel
4. Fascia switch tightening torque 0.4N-m
INSTALLATON:
1. Fit the fascia switch panel on fascia cover.
2. Tight the mounting screws of fascia switch
panel.
3. Fit the electrical connection in fascia switch
panel.
CONNECTION PIN DETAILS
