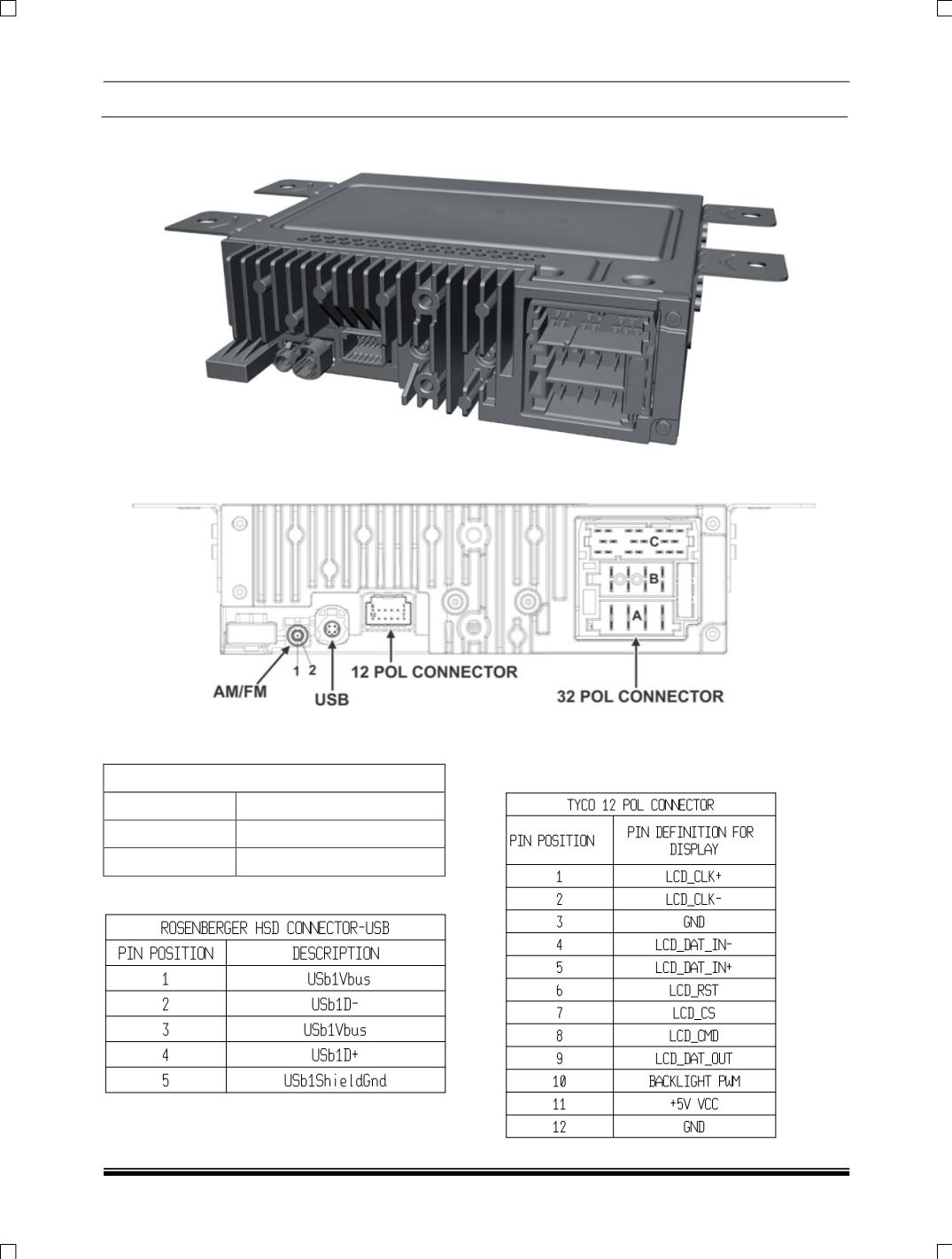

20.2. SILVER BOX (XM-MID VERSION)

1. AM \ FM

AM / FM Antenna

PIN POSITION

DESCRIPTION

1

AM / FM SIGNAL

2

AM / FM SHIELD

2. HSD CONNECTOR USB

3. TYCO 12 POL CONNECTOR
