BODY

10

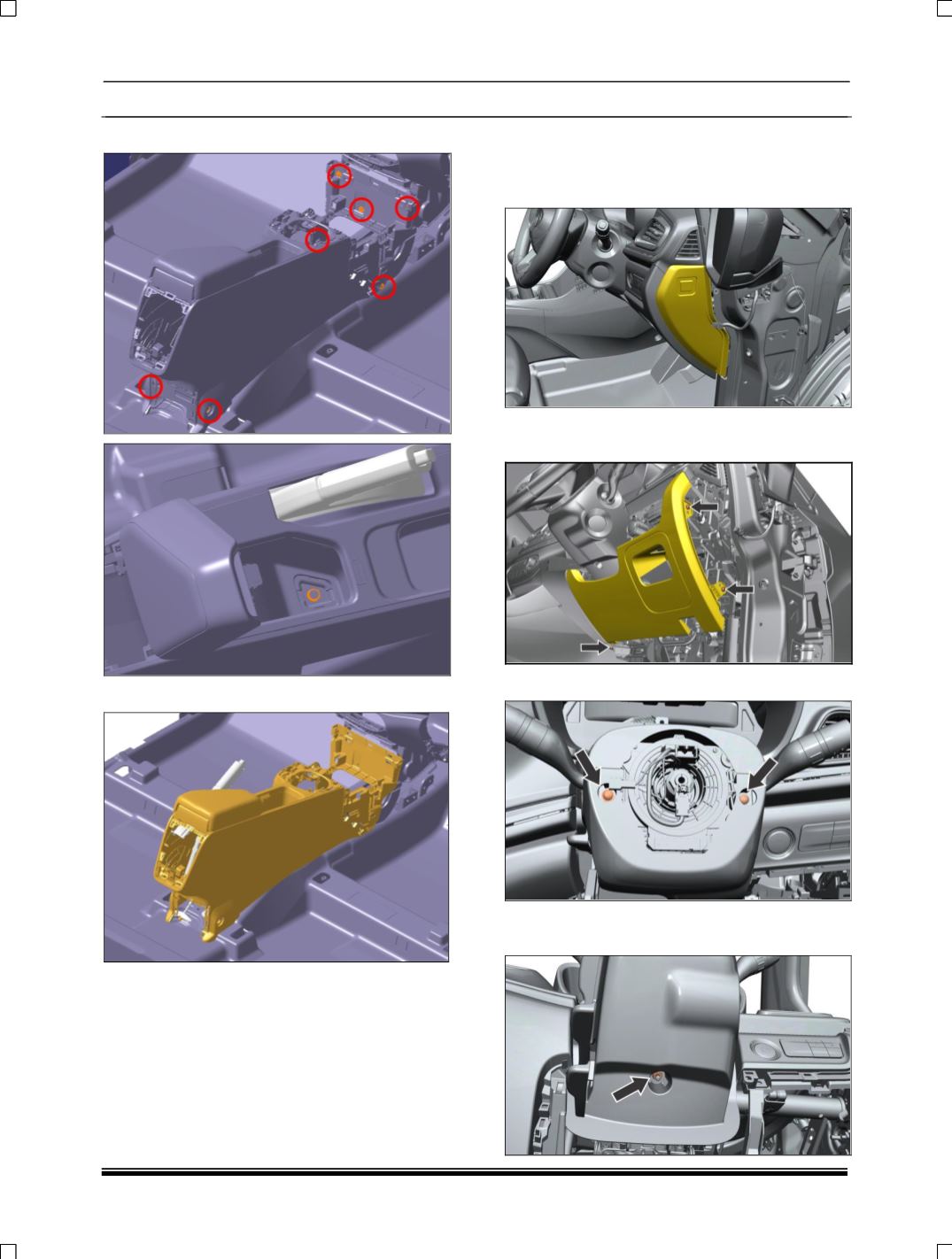

12. Remove the screw and bolt.

13. Remove the floor console Assembly.

2.4 DASHBOARD SKIN

REMOVAL

1. Pull out end cover LH Rh side.

2. Remove mounting screws & Pull out the

driver side steering lower panel.

3. Remove mounting screws at steering column.

4. Remove mounting nut of steering column and

pull out the cap
