BODY

8

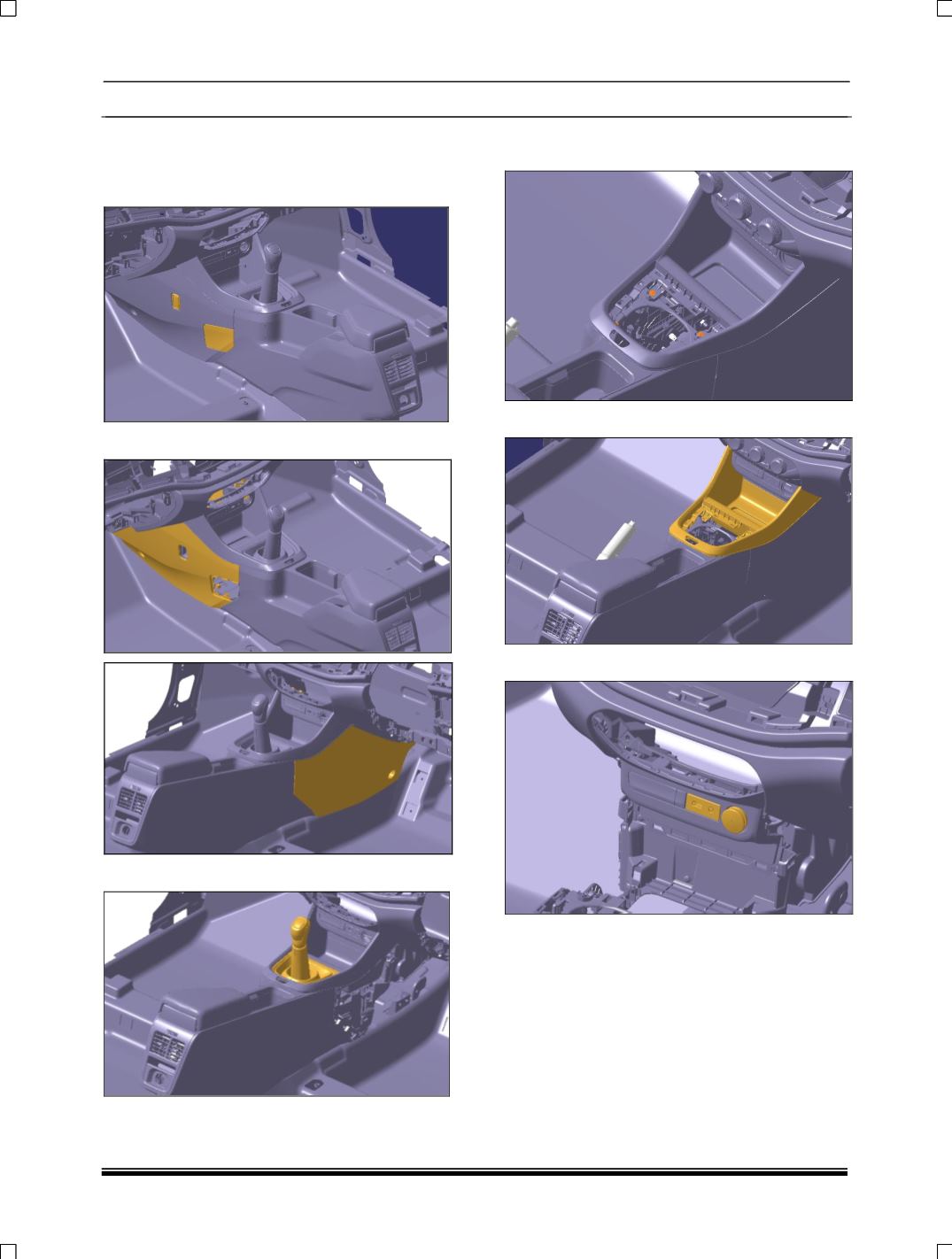

2.3 FLOOR CONSOLE

REMOVAL

1. Pull up Carry hook and GSL access cover.

2. Pull out front side panel assembly.

3. Pull up Gear shifter bezel with bellow.

4. Remove this four screw of front finisher upper

assembly.

5. Pull out front finisher upper assembly.

6. Pull out USB cap and 12V.
