1.5L REVOTORQ ENGINE
163

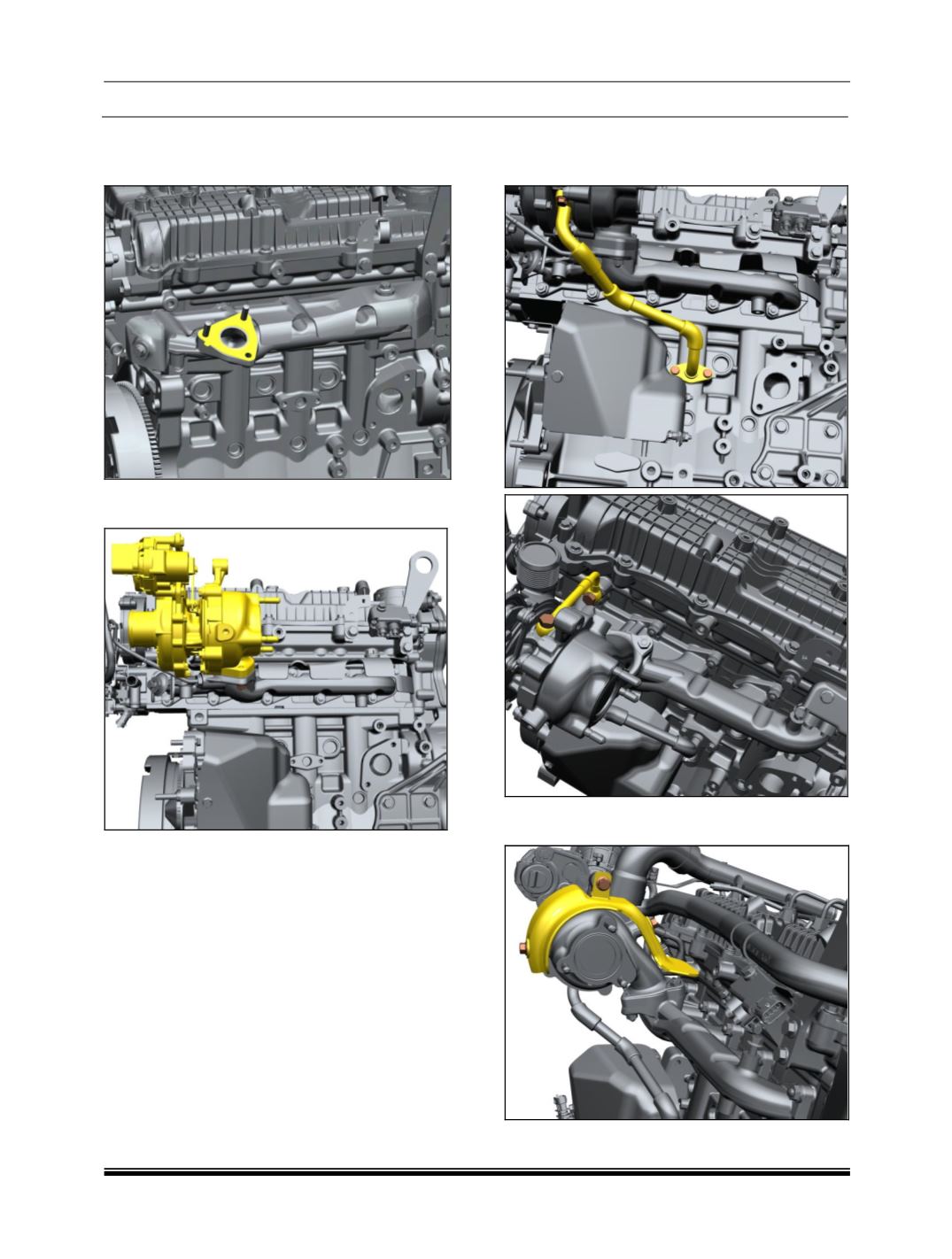

12.Place the gasket and the mounting stud of
turbocharger. Make sure to use new gasket
when installing.
13.Install the turbo charger assembly along with
the heat shield.
14.Install the lubrication lines connecting to the
turbocharger. Make sure to use new gasket
when installing.
15.Install turbocharger heat shield and support
bracket.
