1.5L REVOTORQ ENGINE
161

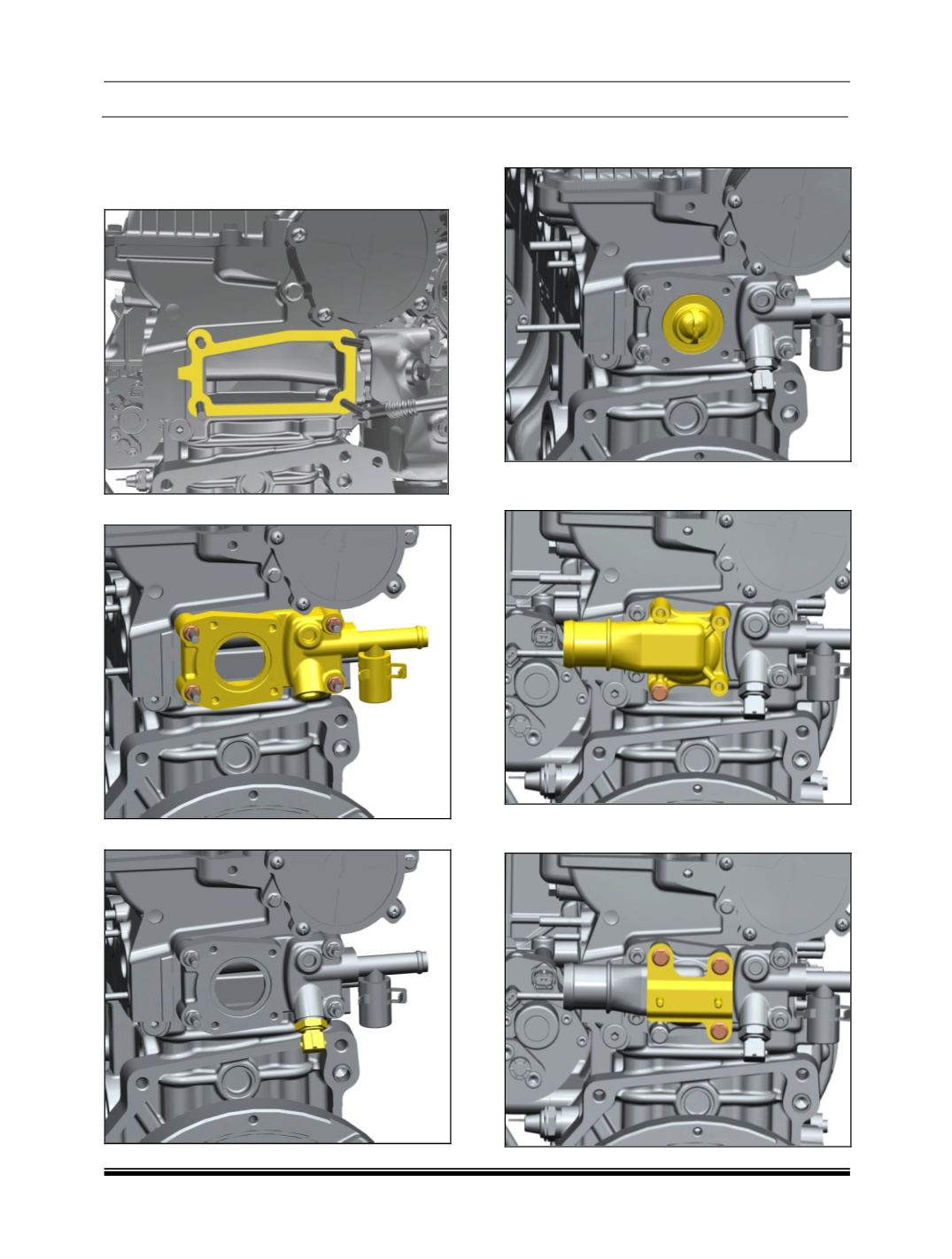

viii. FITMENT OF EXHAUST MANIFOLD AND
OTHER COMPONENTS
1. Place the gasket for water box. Make sure to
use new gasket when installing.
2. Install the water box assembly.
3. Fit the temperature sensor on the water box.
4. Install the thermostat assembly into the water
box.
5. Align the thermostat cover over the water box
and tighten its mounting bolt.
6. Install the EVRV bracket to fit the thermostat
cover along with it.
