1.5L REVOTORQ ENGINE

168

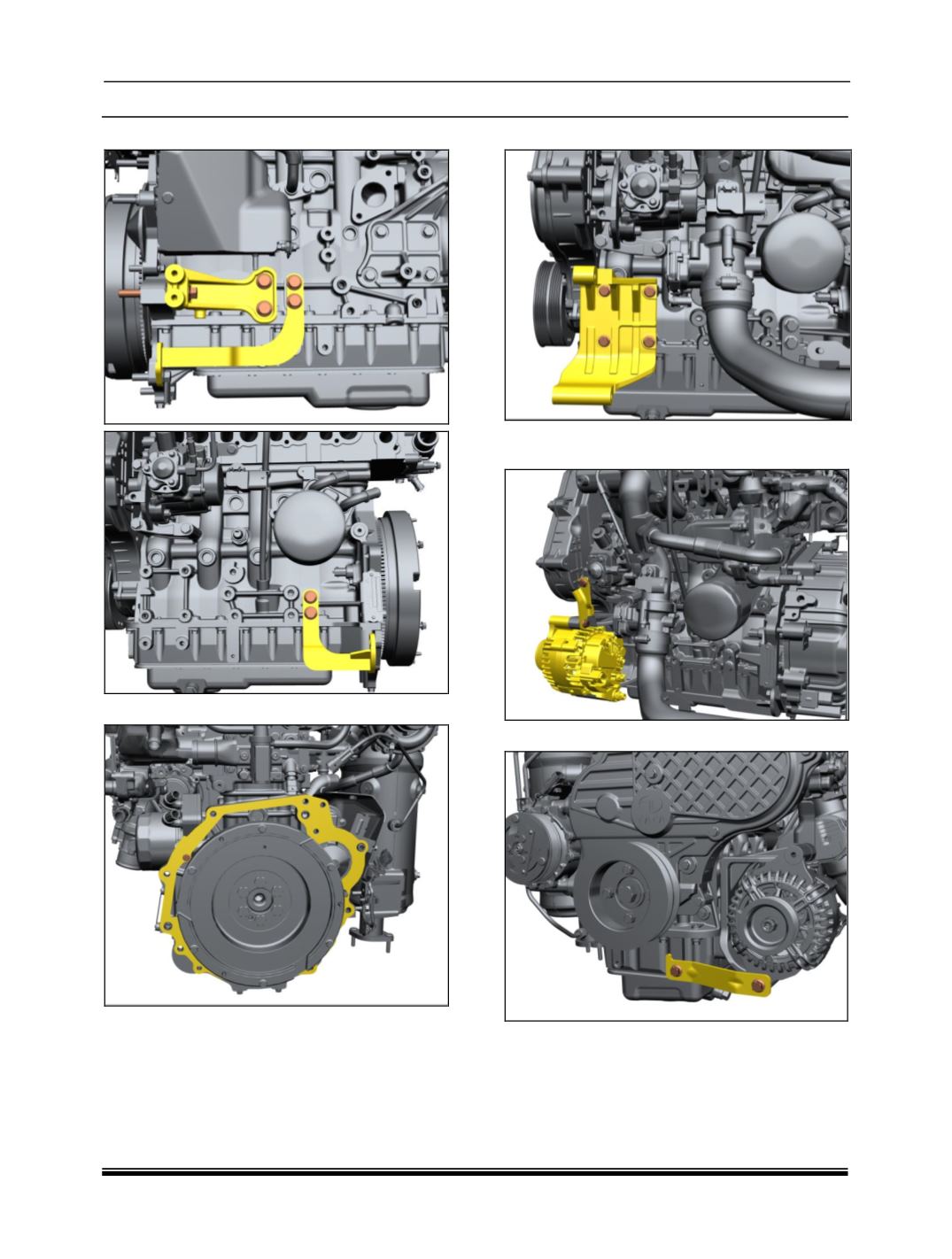

4. Install stiffening bracket on both sides.

5. Install flywheel back plate.

6. Safely lift the engine with the help of crane

and Remove on bench support brackets.

7. Place the engine on support stand.

8. Fit the alternator support bracket.

9. Install the alternator assembly along with

support using mounting fasteners.

10. Fit the alternator support bracket.
