ALTROZ SERVICE MANUAL

1.5L REVOTORQ ENGINE

160

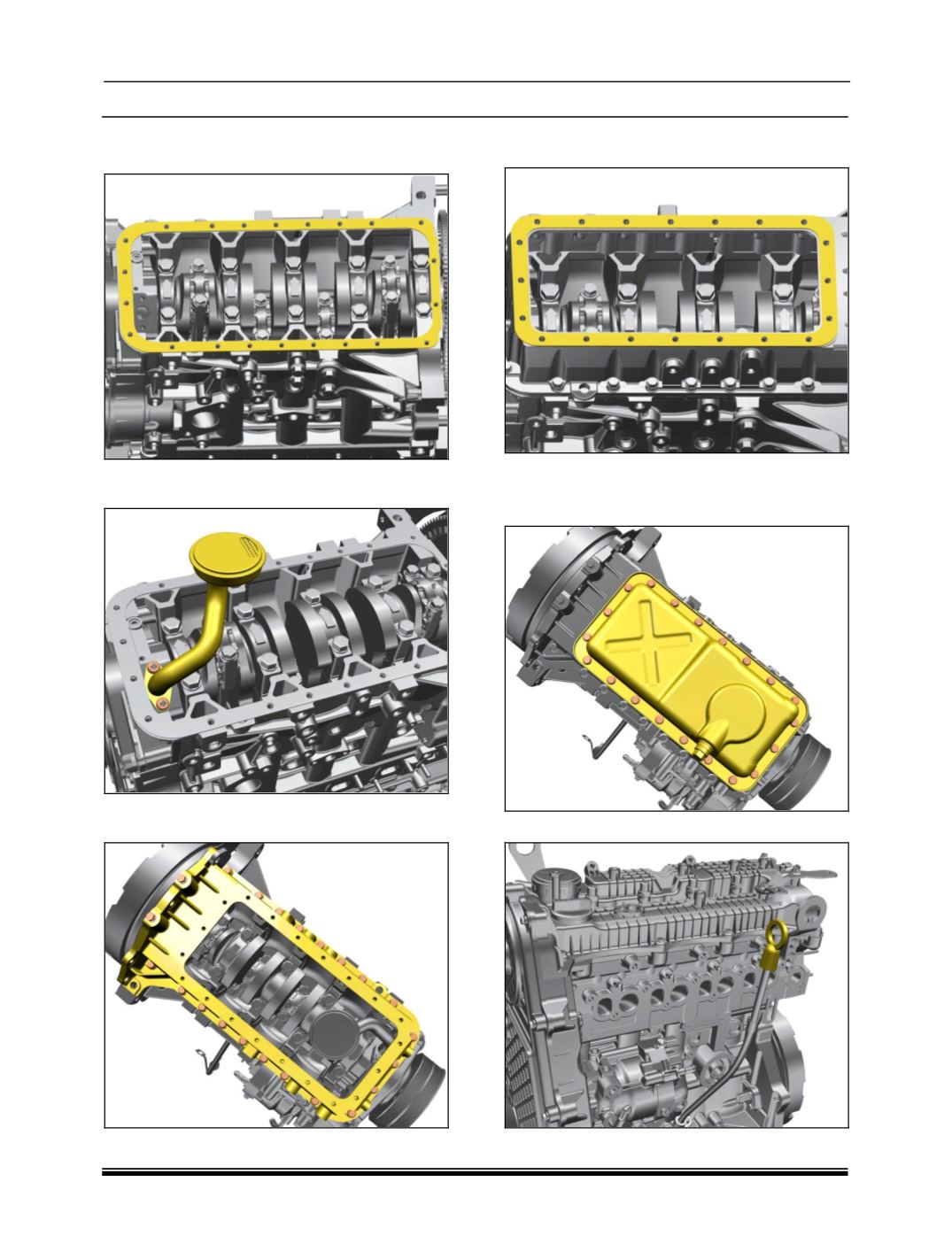

vii. FITMENT OF OIL SUMP

1. Place the gasket for upper oil sump.

2. Install the oil strainer. Make sure to use new

gasket when installing the oil strainer.

3. Apply the sealant (LOCTITE 5900) on upper

oil sump and install the upper oil sump.

4. Place the gasket for lower oil sump on upper

oil sump as shown.

5. Apply the sealant (LOCTITE 5900) on lower

oil sump.

6. Install the lower oil sump.

7. Install the oil dipstick into the dipstick tube.
