1.2L REVOTRON ENGINE
102

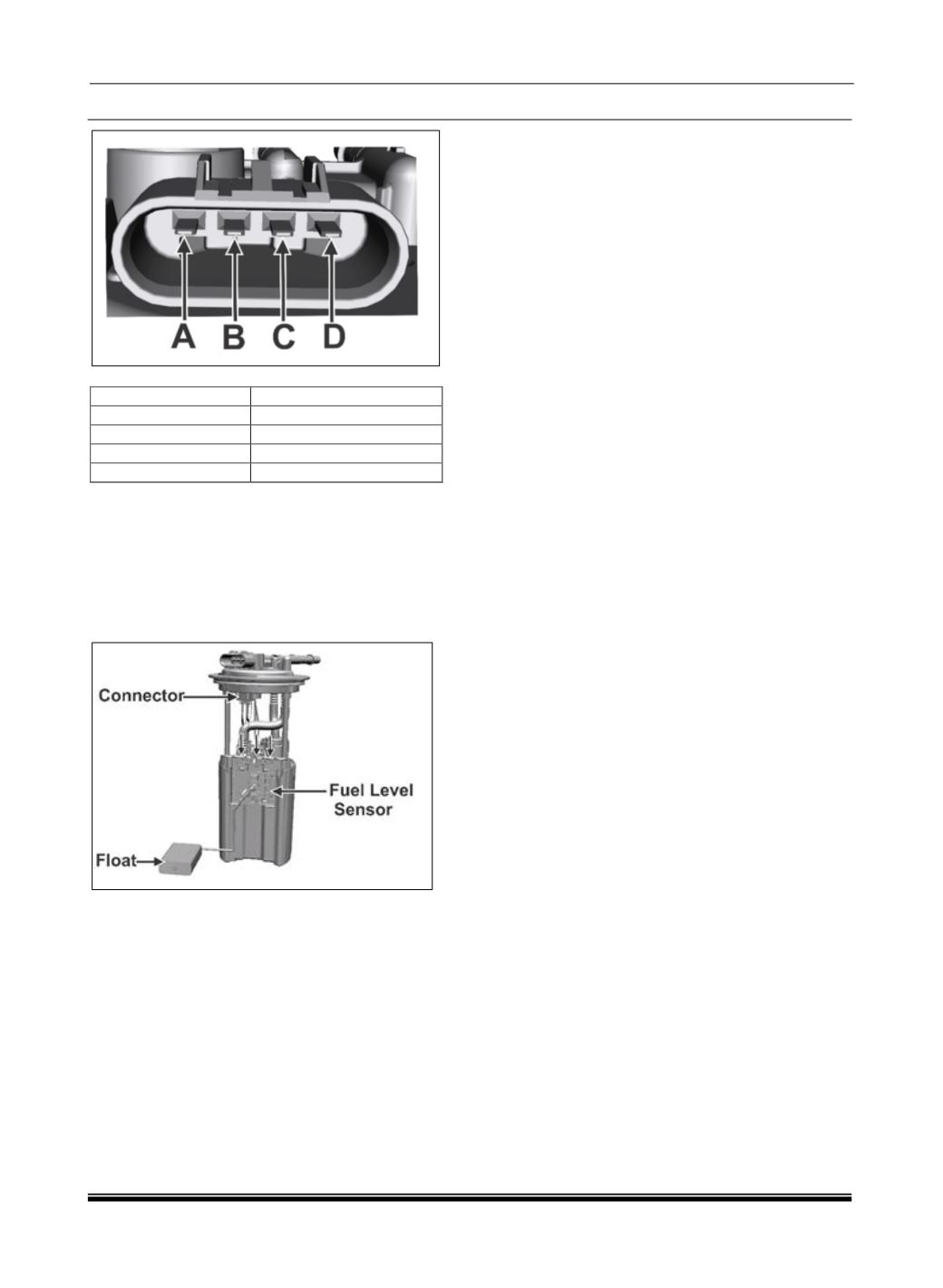

Pin No
Function
A
Fuel Pump (-)
B
Fuel Sensor (+)
C
Fuel Sensor Ground
D
Fuel Pump (+)
Measure the resistance in pins B and C. refer next
page for values at different heights of the float.
FUEL LEVEL SENSOR REMOVAL
1. Remove the tank unit.
2. Disconnect the connector.
3. Remove the fuel level sensor by releasing the
snap.
