1.2L REVOTRON ENGINE
108

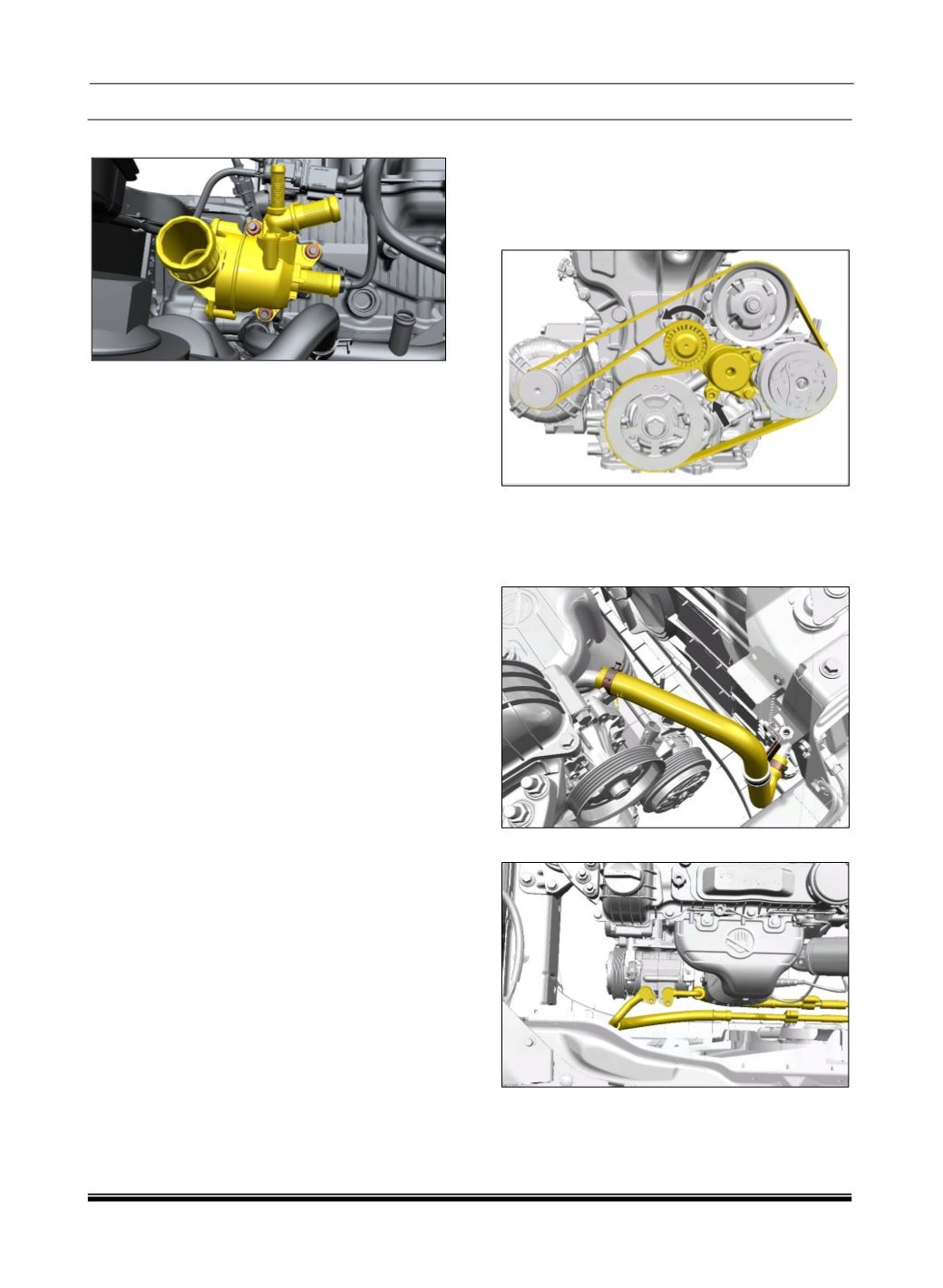

8. Remove the cover mounting nuts
.
FITMENT:
For fitment follow the reverse order of
removal. Tighten fasteners to the recommended
torque.
Thermostat cover mounting: M6 Bolt– (1 Kg-m)
Checking procedure of thermostat:
1. Remove thermostat element from thermostat
housing.
2. Mount thermostat element in a suitable fixture
and place the fixture in a vessel filled with water.
3. Fix dial gauge with its spindle on valve surface
with a pretension of 0.5mm
4. Heat the vessel and measure the water
temperature with proper thermometer.
5. Note down the temperature when dial gauge
needles starts moving indicating valve opening.
6. Note down the water temperature for needle
movement
(for valve fully open position).
7. The opening temperature and fully open
temperature as measured should be as per the
mentioned specifications.
If they do not meet the specifications, replace the
thermostat element.
I. REMOVAL OF ACCESSORIES.
1. Remove the Filter assembly on vehicle.
2. Rotate the tensioner point by using ring
spanner opposite to belt tension to remove the
belt
3. Drain out the coolant.
(For procedure refer
“Coolant
Replacement
”
in
Engine
maintenance section)
4. Remove the coolant inlet hose.
5. Remove the compressor pipes.
