8.
Reading VIN no. from EMS ECU:
1.
Select EMS for Diagnostics in “Diagnostic Tester”
2.
Issue commands in Diagnostics tester:
a.
Start
à
Read vehicle data
à
VIN no.
3.
The text box will show the VIN no from EMS ECU. Select the text in the box showing VIN No. Right
click the mouse button to display a floating menu. Select & click “copy” from the menu to copy the
VIN no to the clipboard.
4.
“Stop” the communication and “exit”

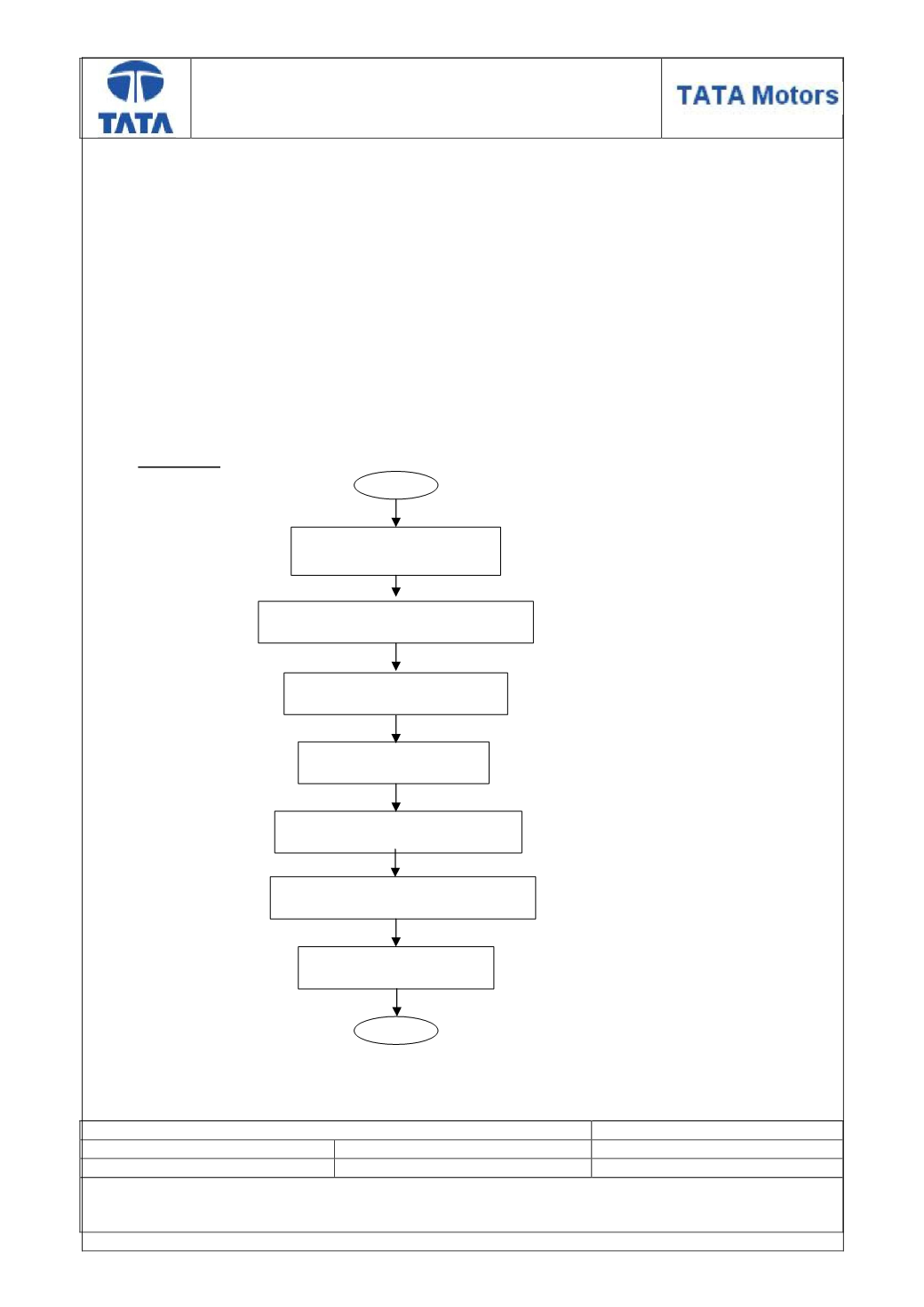

Flow chart
Select EMS for diagnostic
in Diagnostic tester
Select & click “copy” from the menu
to copy the VIN no to the clipboard
In Diagnostic tester
Start -
à
Read vehicle data -
à
VIN no.
“Stop” the communication
and “exit”
END
Start
The text box will show the VIN
no from EMS ECU
Select the text in the box
showing VIN No.
Right click the mouse button to
display a floating menu.
