Transponder & CAN based Immobilizer (Continental)
Part Replacement handling – Service Documentation
TITLE
: Immobilizer (Conti) Service Manual-Aria Eagle
xxxx
Date
: 28-08-2015
Version
: 0.1
Page
:
17 of 25
Prepared :
Amanulla Bugga
Approved: Dinesh G Dodmane
This specification is the exclusive property of Tata Motors Limited. Without their consent it may not be
reproduced or given to third parties
.
The above specifications are subject to change and therefore
suppliers are requested to refer the latest one.
CONTROLLED COPY FOR RESTRICTED CIRCULATION

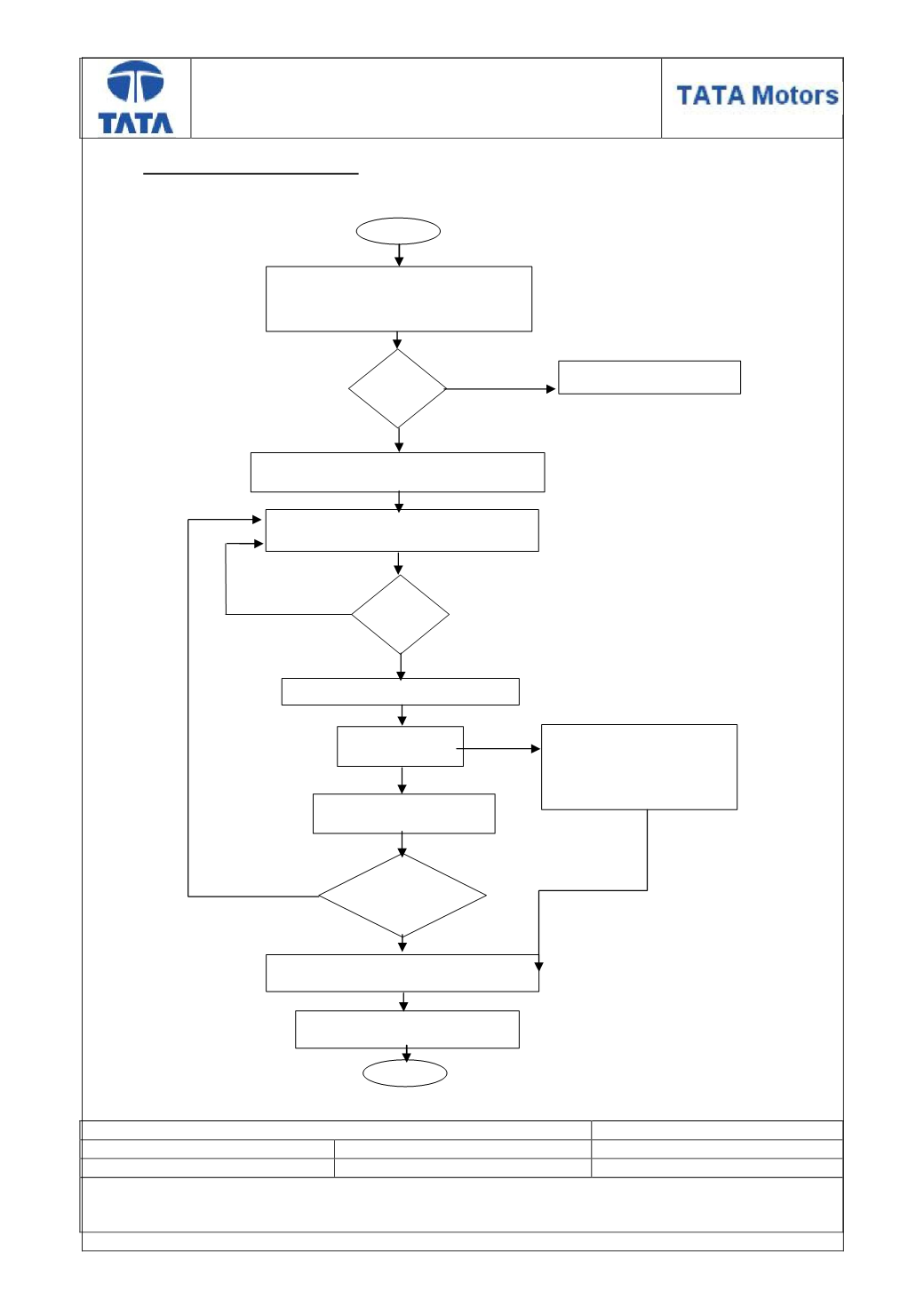

Flowchart to add new E key
Switch off Ignition OFF & ON
for normal operation
Connect the diagnostic tester to
diagnostic connector in vehicle
& Turn ignition ON
Start
Diagnostics tester:
Start -
à
Additional E-Key Learning Mode
OFF
Remove the key from the SCL
Status
lamp
Status
lamp
Blinking
Want to stop the
learning process?
Status lamp will be continuously
ON
(indicates learning process is finished)
Wait for 40sec with learnt E
key OR Ignition off/
Remove Learnt E Key &
Insert same again
Yes
Yes
No
No
ON
Insert new E-key in SCL
(within 40 seconds)
END
Status lamp will be
ON
briefly as ICU
checks the validity/ learning the key
ON
No. of Keys
learned<6?
Check the DTC error
