X2 Eagle
ABS DTC Troubleshooting Data
Version: 1.0
Date: 03-Dec-15
Author: ERC, Chassis E&E CoC
Page: 151 of 154
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

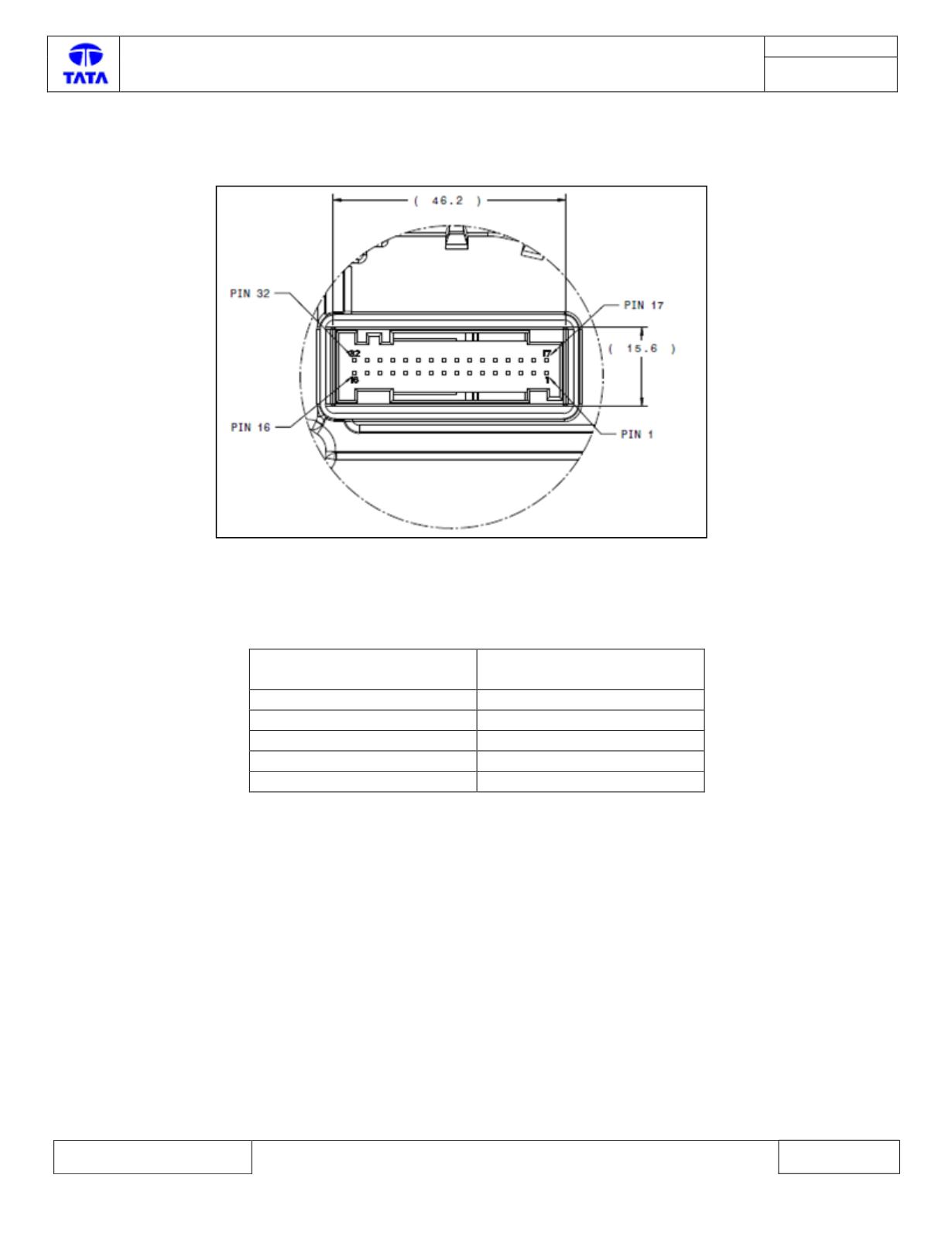

IPC ECU connector schematic
Pin details:
Pin description
Pin No
Battery
1
GND
23
IGN
18
CAN_H
5
CAN_L
4
