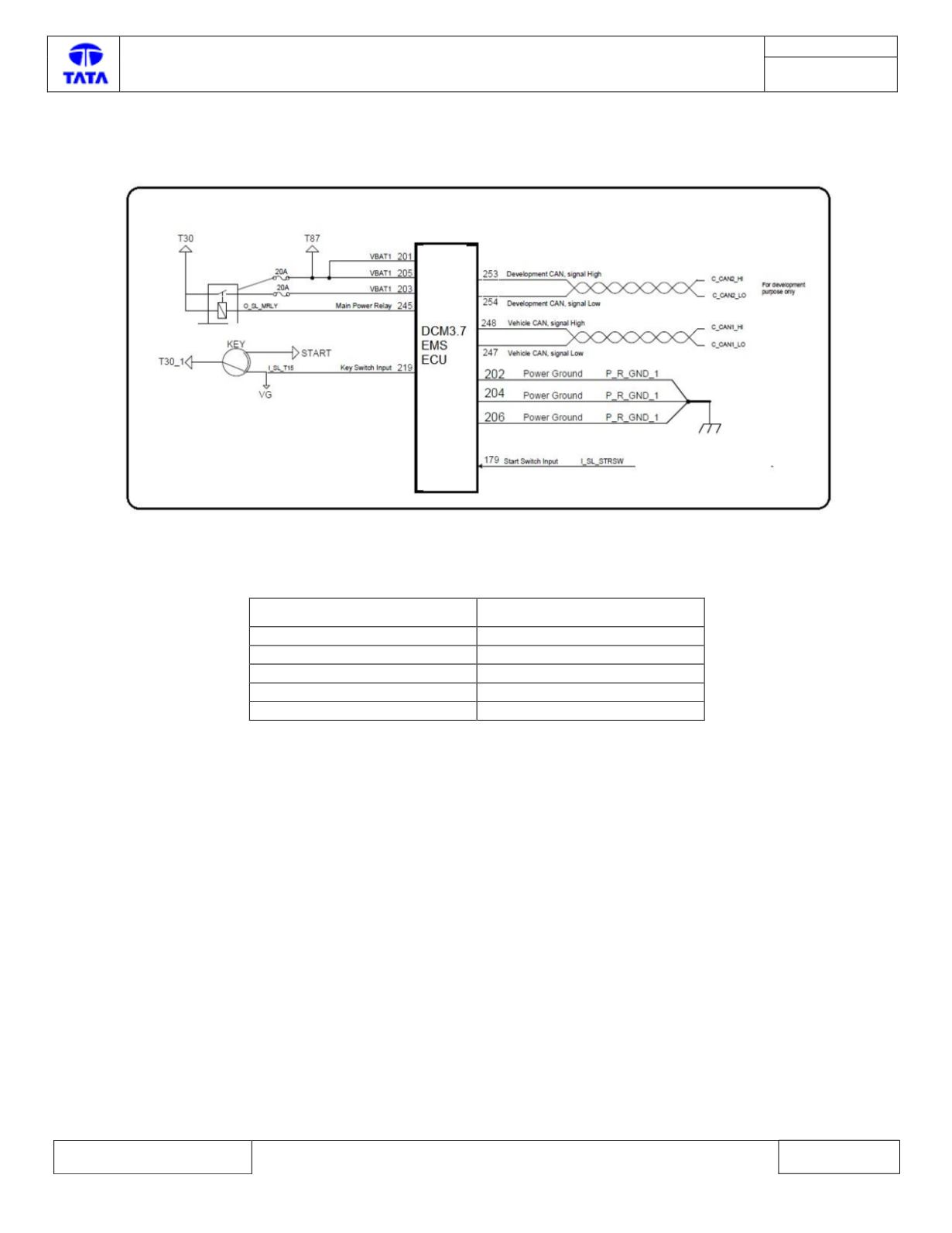

EMS ECU Schematic:
Pin Details:
Pin Description
Pin No.
Battery
201, 205 and 203
GND
202, 204 and 206
IGN
219
CAN_H
248
CAN_L
247
