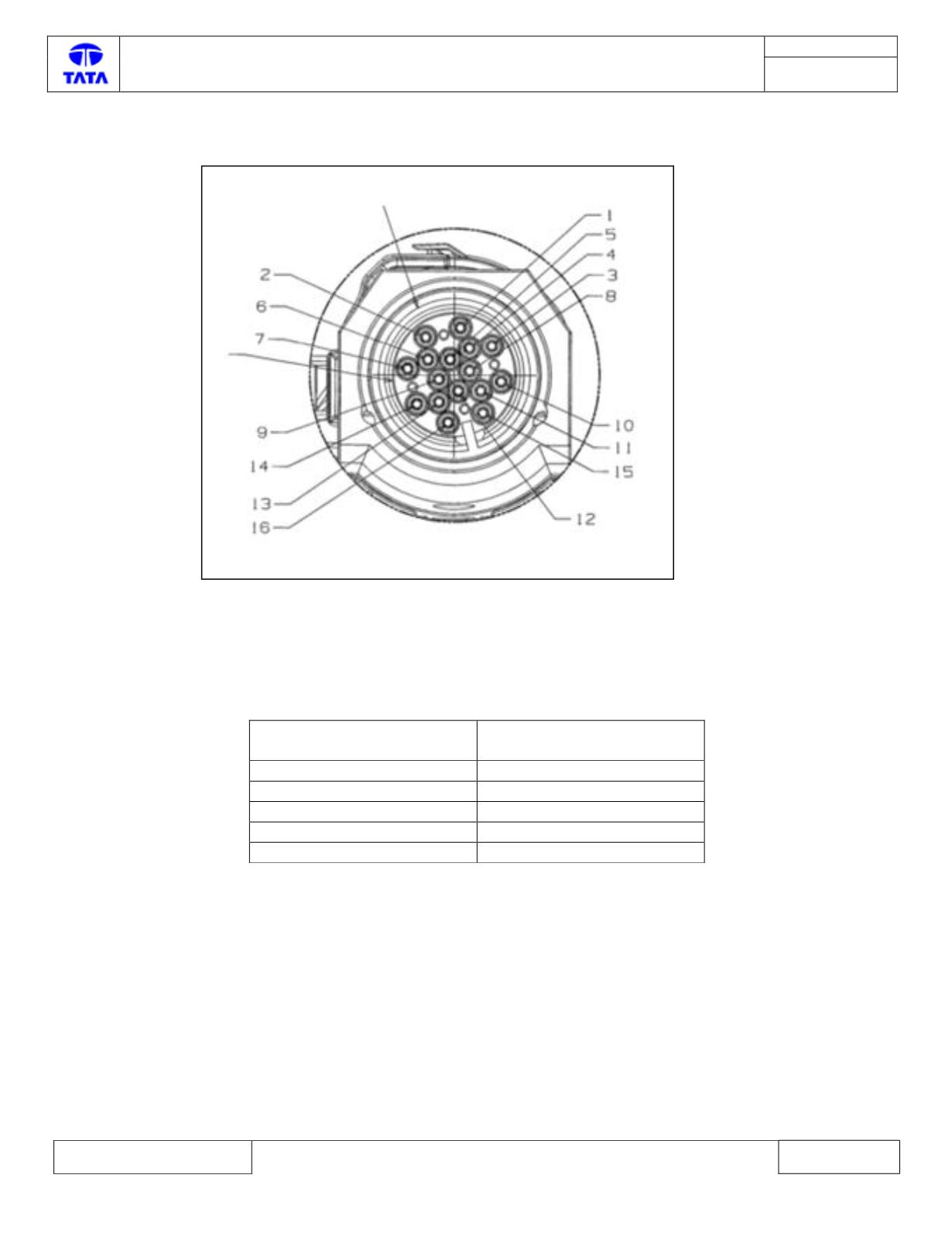

TCM ECU connector schematic
Pin details:
Pin description
Pin No
Battery
4
GND
5
IGN
9
CAN_H
10
CAN_L
11
