HARRIER BOOK 2

Vehicle Platform: OSPREY

ECU Name: Hella Body Control Module (BCM) DTC

Troubleshooting Data

Version: 1.4

Date: 15 May 2018

Author: Body CoC

Page: 796 of 855

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

Trouble Shooting:-

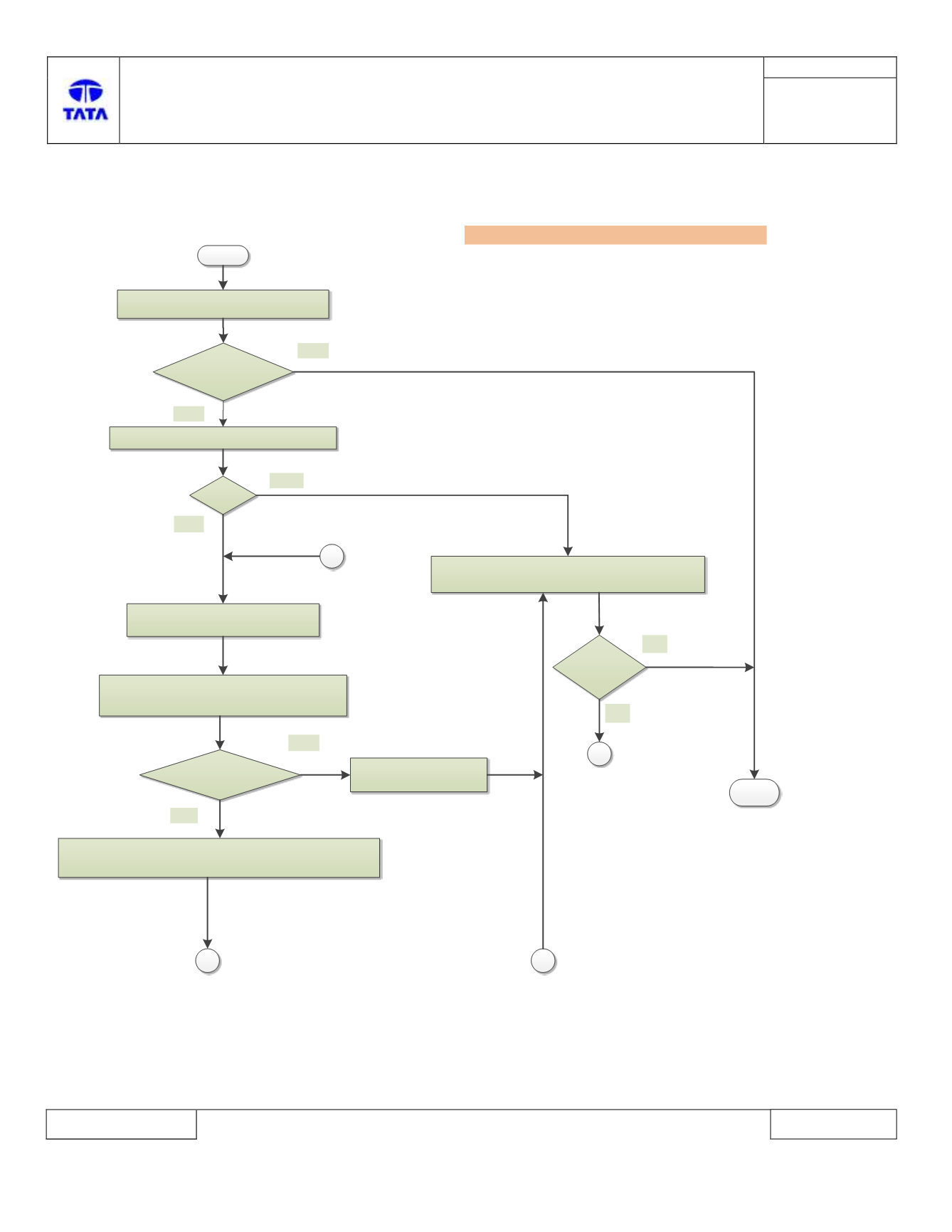

B163F – 23: Tailgate Unlock switch – Signal Stuck Low

START

Connect Diagnostic tooland check for DTCs

Is DTC B163F -23

present?

STOP

Check DTC present is Permanent or Historic

Is History?

1. Press the Tailgate Unlock switch and release it.

2. Clear DTC

Is DTC B163F -

23 present?

YES

Disconnect vehicle battery connection.

(Pleasefollow the safety guidelines)

Check BCM and Tailgate Unlock switch connectors

for terminal back out.

Are connectors loose?

Reconnect connectors firmly

YES

1.Remove BCM side wiring harness Connector.

2.Perform visual check of connectors for pins bent or damaged etc.

YES
