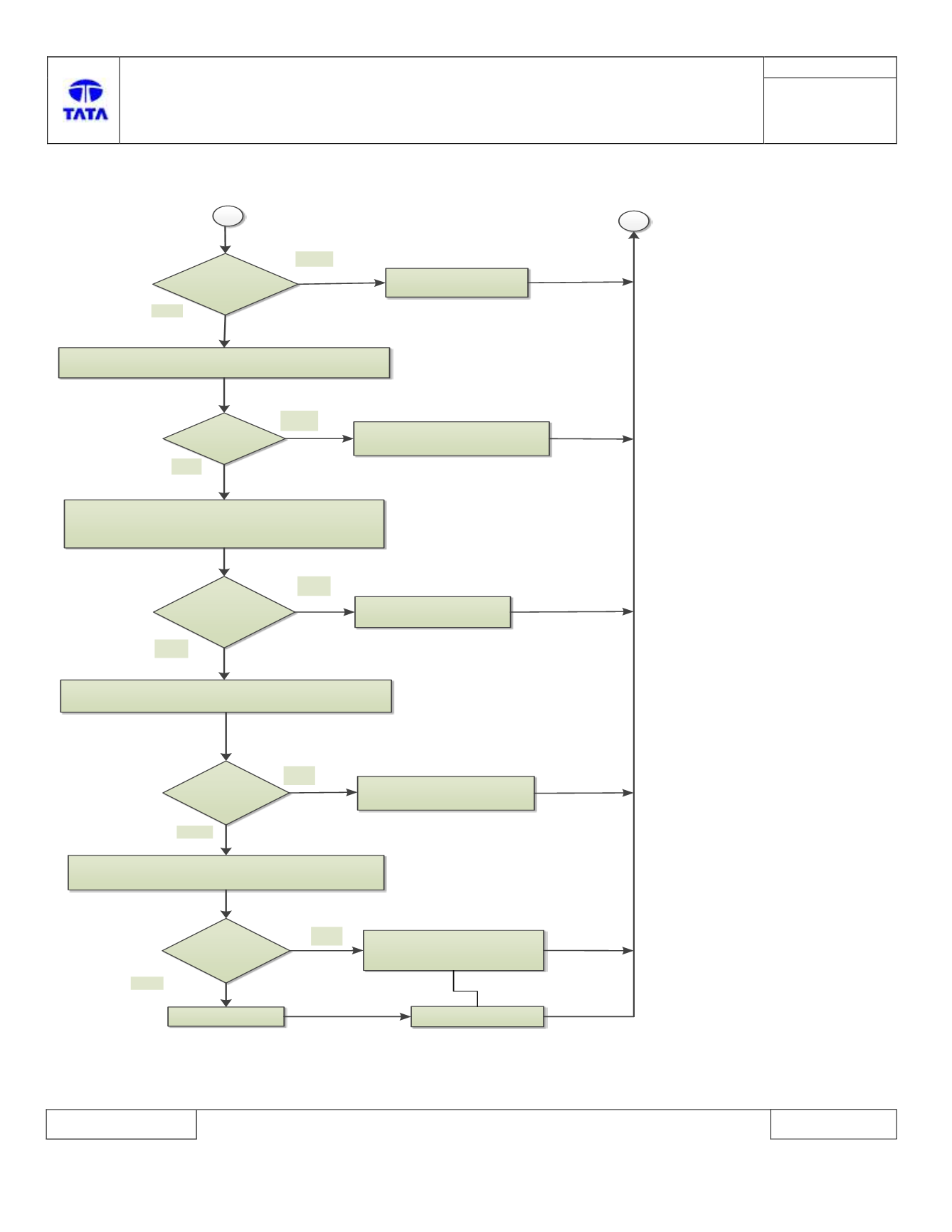

Is connector faulty?
Correct connector fault
(Terminals Bend)
YES
Check continuity between BCMconnector pin and BCM
ground
Continuity
found?
Correct BCM side wiring harness
( Short to Ground)
YES
1. Remove Down Switch mating connector
2. Perform the visual check of connectors for pin bend or
damaged etc.
Is connector faulty?
Correct connector fault
(Terminals Bend)
YES
NO
Check continuity between two terminals OF Down
Switch
Continuity found?
1. Switch is faulty
2. Replace Down Switch
BCM ECU Faulty
Replace BCM ECU
Check continuity between Down Switch terminal and
ground
Continuity
Found?
Correct Down Switch side
wiring harness
( Short to Ground)
NO
YES
NO
NO
NO
YES
A
B
