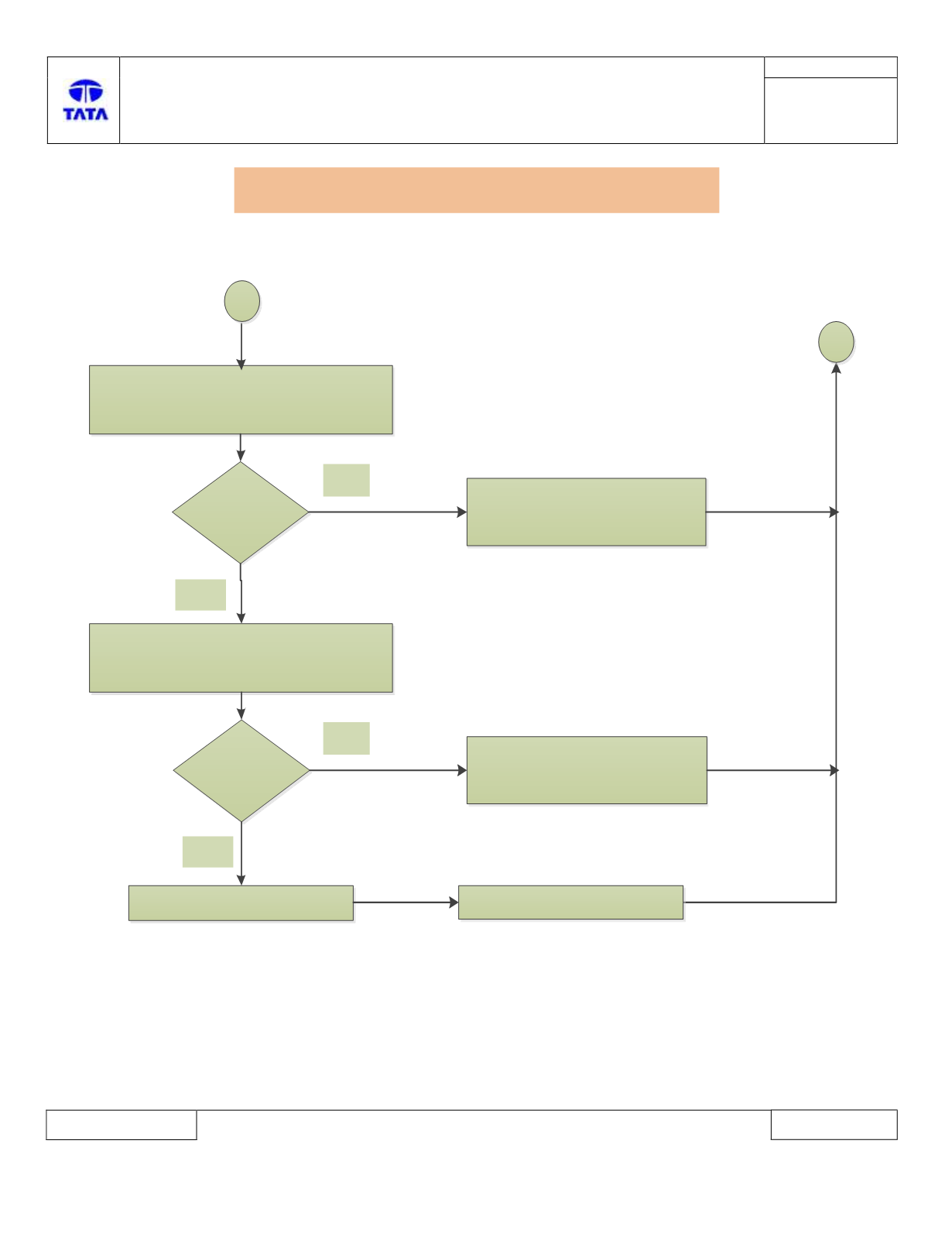

Check continuity between two terminals of
Illumination Level switch
Continuity
found?
BCM ECU faulty
1. Switch is faulty.
2. Replace Illumination Level switch
NO
YES
Check continuity between Illumination level
Switch & Battery
Continuity
found?
Correct Illumination Level switch side
wiring harness(Short To Battery)
YES
NO
Replace BCM ECU
B
A
B1F08 – 12 : Illumination Level Switch - Circuit Short to Battery
