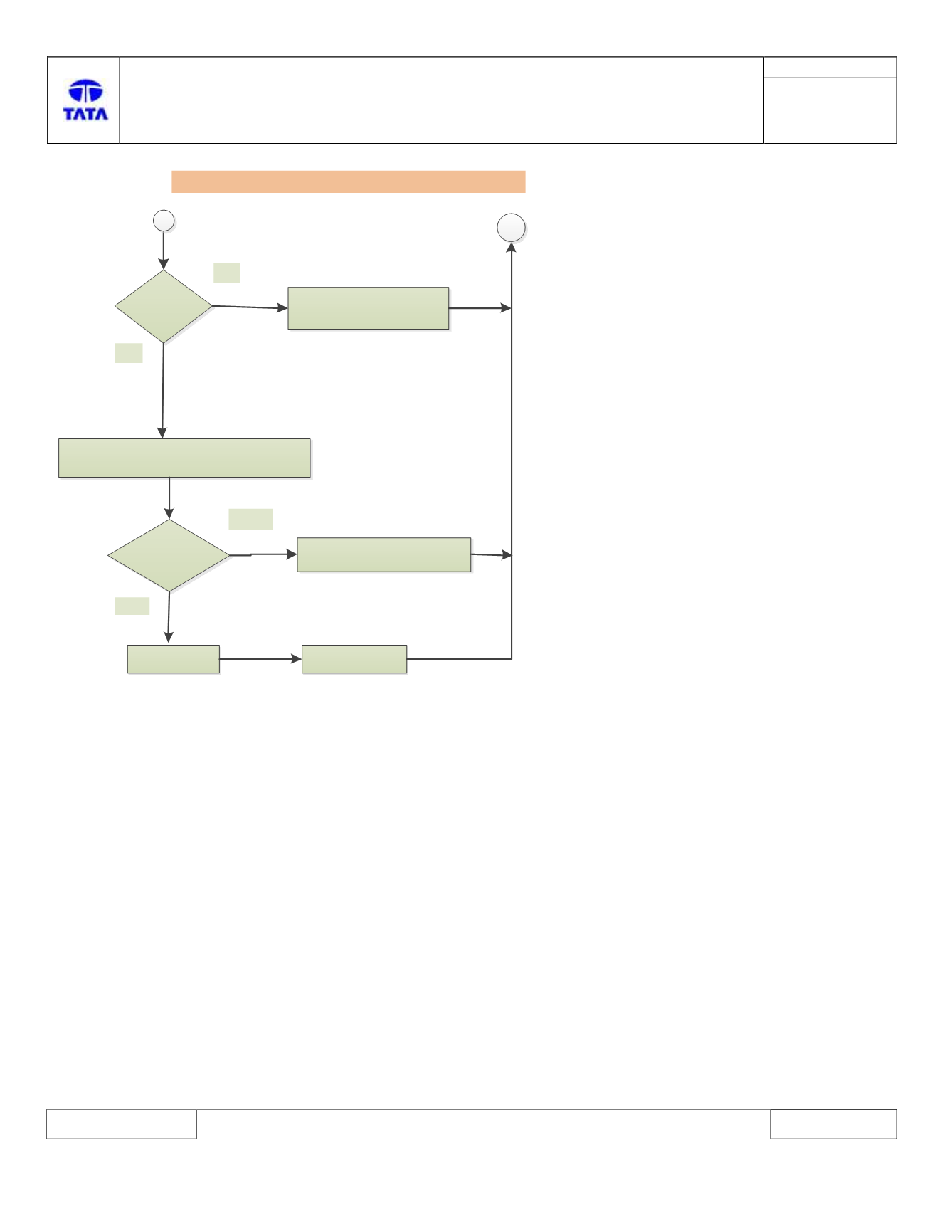

B225D–09:Combination Switch Failure (Wipers) – Component
Failures
DTC’s confirmation:-
After rectification, ensure the following points by using TML diagnostic tool before handing over to customer.
Check DTC B225D – 09 is not logged
