Vehicle Platform: OSPREY
ECU Name: Hella Body Control Module (BCM) DTC
Troubleshooting Data
Version: 1.4
Date: 15 May 2018
Author: Body CoC
Page: 51 of 855
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

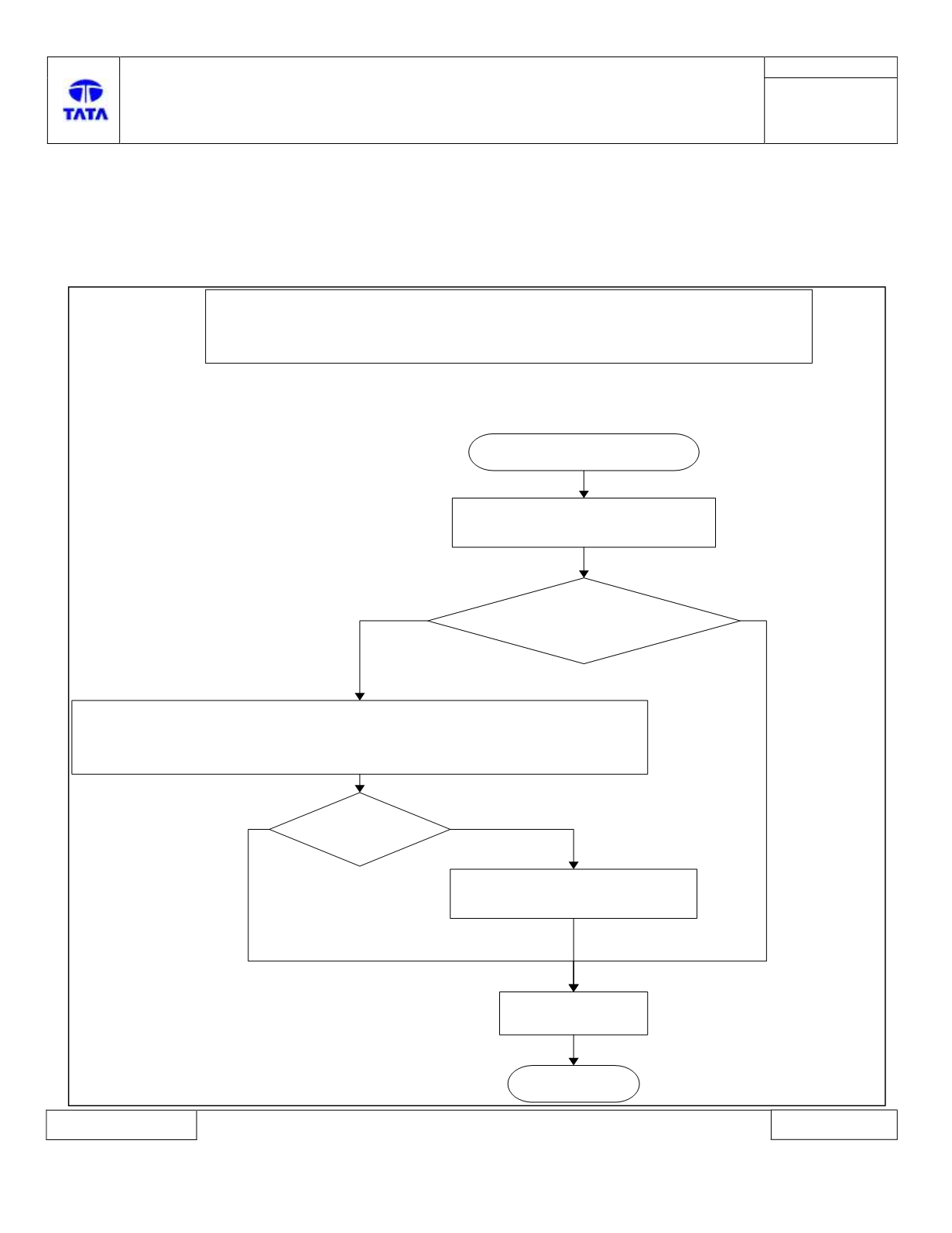

Trouble Shooting:-
Start
Read IVN DTCs in BCM
If MTO logged against
IC in current state?
No (In history)
Check continuity between BCM CAN_H (Connector A pin no. 48 ) to
IPC CAN_H(pin no. 6) and BCM CAN_L (Connector A pin no. 49 ) to
IPC CAN_L(pin no. 5) in vehicle wiring side connector.
Is continuity
there?
Repair the wiring harness
Clear DTC
Stop
Yes
Yes
No
U0155-08 Loss of communication with Instrument
Cluster Panel- Message Timeout Failure
