23
GND
Power GND
Connector View & Information: -

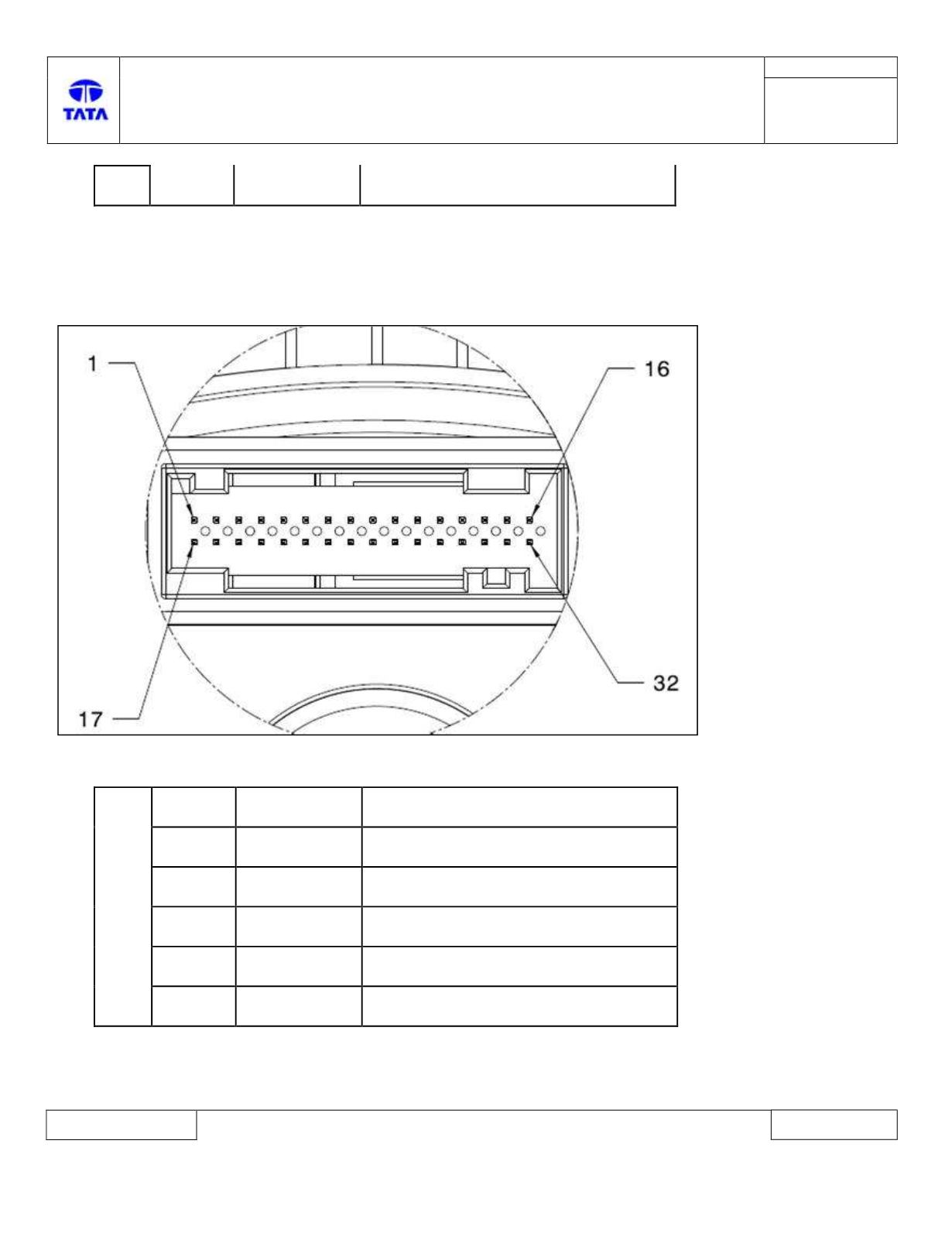

IPC ECU side connector diagram
ECU Pin assignment:-
CHAMBER A
Pin No.
Pin Name
Description
1
CAN_H
CAN High
2
CAN_L
CAN Low
7
A_GND
Common Switch GND
12
Vbat
Supply Voltage Battery
23
GND
Power GND
Inspection Method: - N.A
