HARRIER BOOK 2

Vehicle Platform: OSPREY

ECU Name: Hella Body Control Module (BCM) DTC

Troubleshooting Data

Version: 1.4

Date: 15 May 2018

Author: Body CoC

Page: 47 of 855

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

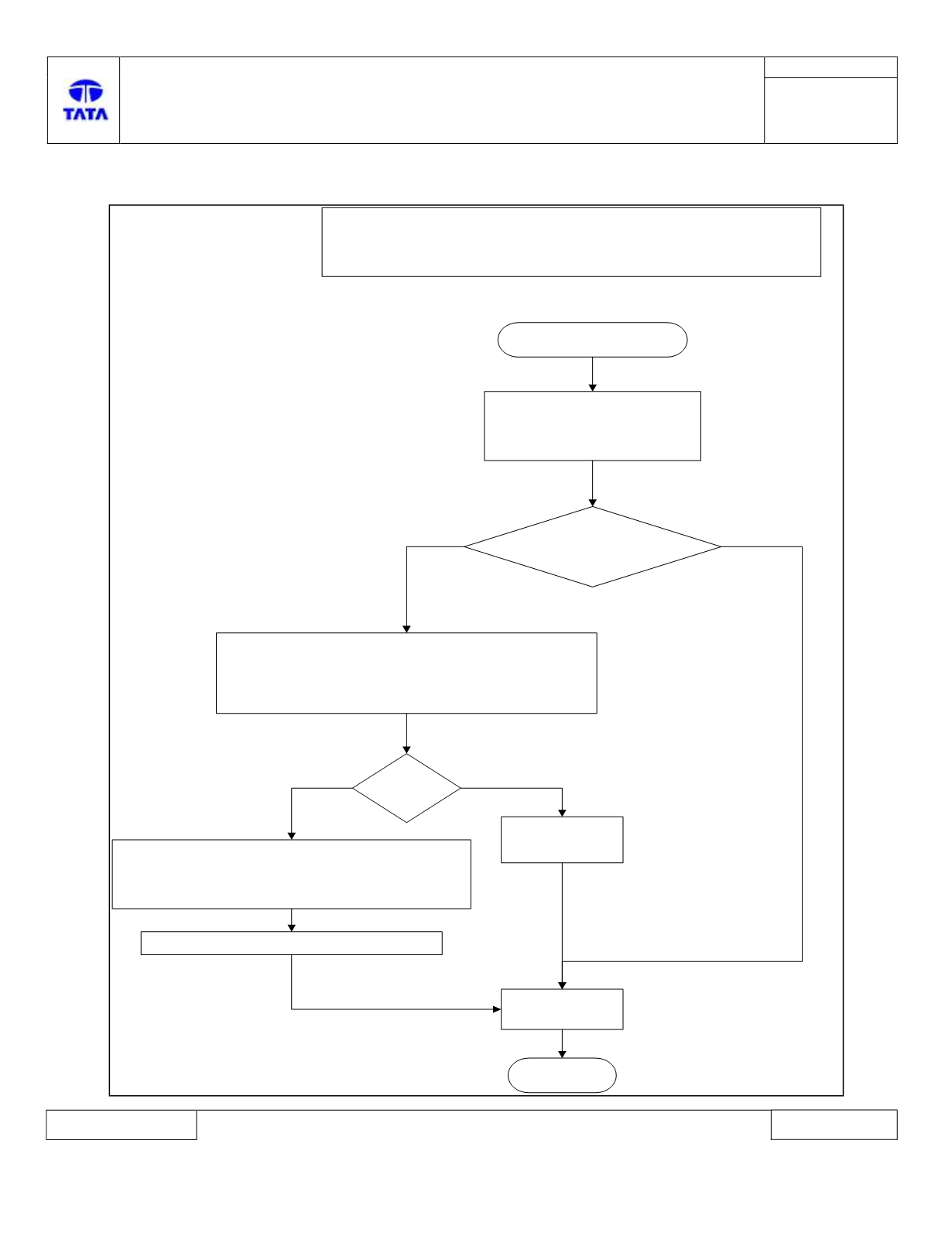

Trouble Shooting:-

Start

Read IVN DTCs in BCM

If MTO logged against

SRS in current state?

No (In history)

Check continuity between SRS CAN_H (Chamber A

connector pin no.1 ) to IPC CAN_H(pin no.6 ) and SRS

CAN_L (Chamber A connector pin no.2 ) to IPC

CAN_L(pin no. 5) in vehicle wiring side connector.

Is continuity

there?

Repair the wiring

harness

Clear DTC

Stop

Check Battery (Chamber A connector pin no.12)

and Ground (Chamber A connector pin no.7 and 23 )

of SRS is properly connected or not. Also check fuse

blown (Fuse 10A)

Do necessary repair in the harness

Yes

U0151-08 Loss of communication with Restraints

Control Module(SRS)
