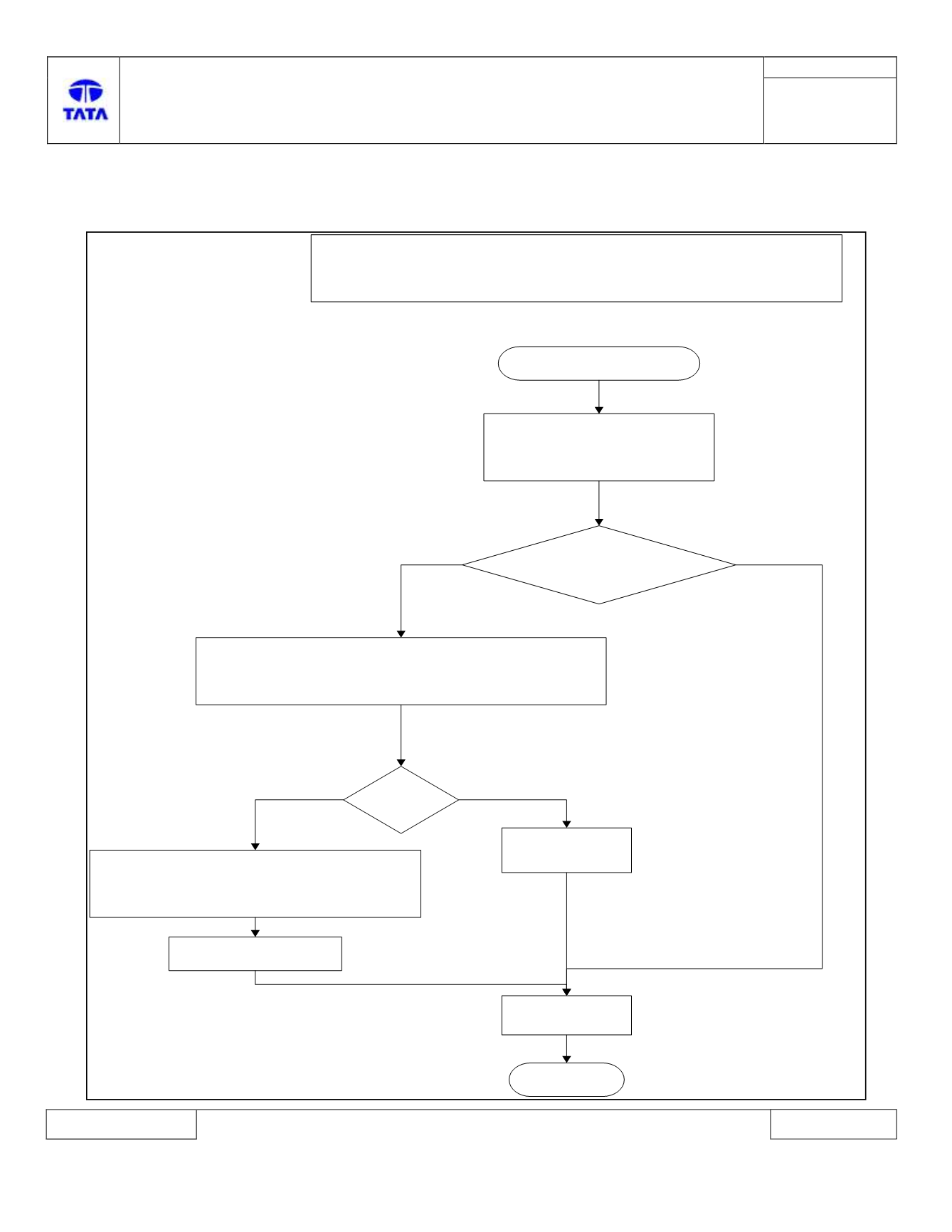

Trouble Shooting:-
Start
Read IVN DTCs in BCM
If MTO logged against
ABS in current state?
No (In history)
Check continuity between ABS CAN_H (pin no.26 ) to
IPC CAN_H(pin no.6 ) and ABS CAN_L (pin no.14 ) to
IPC CAN_L(pin no. 5) in vehicle wiring side connector.
Is continuity
there?
Repair the wiring
harness
Clear DTC
Stop
Check Ignition (pin no.28), Battery (pin
no.1,25) and Ground (pin no.13,38 ) of ABS
is properly connected or not. Also check fuse
blown (Battery fuse 25A and ignition fuse 5A)
Do necessary repair in
the harness
Yes
Yes
No
U1309-08 Loss of communication with Anti-Lock
Braking System/Electronic Stability program(ABS/
ESP)
